Description

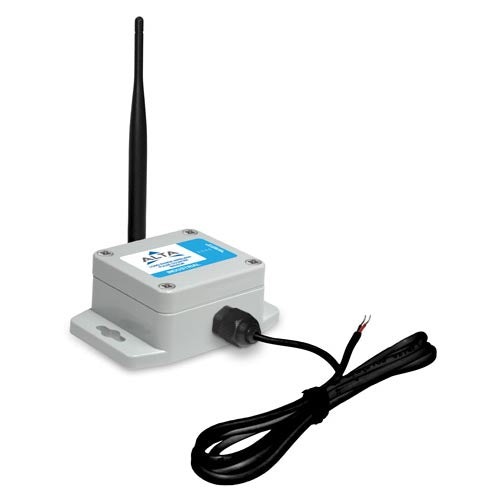

Monnit wireless pulse counters can be integrated with a dry contact or mechanical switch to count the number of actuations occurring within a given time frame. 1,200+ foot range 12+ year battery life 80+ wireless sensors Bank-level AES security Up in 15 easy setup Global ready (900, 920, 868 & 433 MHz) Maximum Count: 4294967296 (32 bit number) Input Voltage: 0 to 15 Volts DC Detection Wires: High Impedance (2-Wire), 3 ft. length Counter Operation: Positive and / or Negative Edge Pulses Compatibility: Open Collector NPN Switches (Passive) Mechanical Switches (Passive) 0-15V Driven Source (Active) Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR) UL Rating: UL Listed to UL508-4x specifications (File E194432) Weight: 5 oz. (142 g.) Supply Voltage: 2.0 - 3.8 VDC Battery Type: Replaceable 3.6V, 1800mAH (single AA sized) Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.** Max Operating Temperature: -40° to 85°C (-40° to 185°F) Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F) Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F) Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure UL Rating: UL Listed to UL508-4x specifications (File E194432) Dimension: 3.7 in x 2.32 in x 1.38 in Operating Frequency: 900 MHz Operating Frequency Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1) Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range* Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
Monnit MNS2-9-IN-PC-01-SOL Features
Pulse Counter Specifications
Variation Specifications
ALTA Industrial Specifications
ALTA 900 MHz Specifications
