Description
Monnit wireless accelerometers can be used in a host of applications where knowing impact, vibration, inclination, etc. is required.

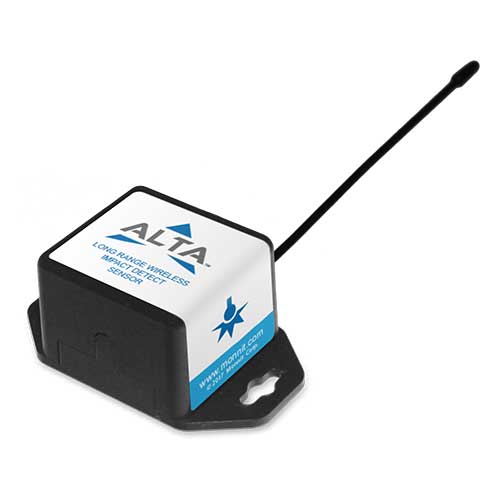

The wireless accelerometer - Impact Detection sensor activates when g-forces are exceeded by a user defined threshold – up to 8 g-force. The user can key in the desired threshold for the g-force trigger. This sensor has two operation modes that can be also selected by the user: High Performance and Low Power. High Performance has an output data rate of 800 Hz with the High Pass Filter cutoff at 16 Hz while the Low Power has an output data rate of 12.5 Hz with the High Pass Filter cutoff at 0.25 Hz. 1,200+ foot range 12+ year battery life 80+ wireless sensors Bank-level AES security Up in 15 easy setup Global ready (900, 920, 868 & 433 MHz) Sensitivity: 4096 count/g Sensitivity Range: +/-2 G, +/-4 G, +/-8 G Measurement Accuracy: ±2.5 % (Force: X, Y, Z) Minimum G Force to Turn On/Wake Up: 0.050 g - 0.100 g Bandwidth for Data Measurement: 800 Hz Weight: 3.7 oz. Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR) Battery Type: Replaceable 3.0V (CR2032) Coin Cell Battery Dimension: 2.0 in x 1.125 in x 0.875 in Max Operating Temperature: -7°C to +60°C ( 20°F to +140°F ) Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F ) Supply Voltage: 2.0 - 3.8 VDC Battery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years. ** Enclosure Technology: Monnit PinchPower™ Wireless Sensor Enclosures Enclosure Material: ABS Operating Frequency: 900 MHz Operating Frequency Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1) Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range* Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
Monnit MNS2-9-W1-AC-IM Features
Accelerometer Specifications
Variation Specifications
ALTA Coin Cell Specifications
ALTA 900 MHz Specifications
