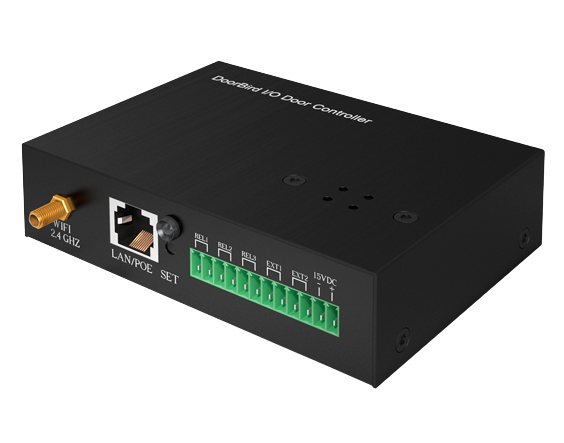

Doorbird IP IO Door Controller

DoorBirdSKU: A1081



The A1081 DoorBird I/O Door Controller offers tamperproof control of up to three doors or gates over a network. It can be installed in a protected interior area, such as a control cabinet in the basement and can be connected to the DoorBird IP video door station via the network.

Doorbird IP IO Door Controller Features:

  • Tamperproof control of up to three doors or gates
  • Encryption based on banking standards
  • Monitoring of two external sensors
  • Three freely configurable, bi-stable switching relays (permanently open, permanently closed, toggle)
  • The switching relays keep their state even in the case of loss of power
  • Wireless network, Ethernet, PoE
  • Alarm notification via push notification on smartphone and tablet
  • Can be mounted on walls, ceilings or in control cabinets

Doorbird IP IO Door Controller Specifications:

  • Dimensions: 122 x 86 x 32 mm (L x W x H) 4.8 x 3.39 x 1.26 in (L x W x H)
  • Power supply 15 V DC or power over Ethernet (PoE 802.3af mode A)
  • Operating conditions -5 to 55°C / -23 to 131°F Humidity 10 to 85 % RH (non condensing)
  • Connectors: SMA, RJ45 (10/100 Base-T) for LAN/PoE, 12-pin screw terminal for • 15 V DC input (+, -) • Bi-stable latching relay #1, max. 24 V DC / AC, 1 Ampere • Bi-stable latching relay #2, max. 24 V DC / AC, 1 Ampere • Bi-stable latching relay #3, max. 24 V DC / AC, 1 Ampere • External input 1 (potential-free) • External input 2 (potential-free)
  • WiFi 2.4 GHz, 802.11 b/g/n, external antenna
  • PoE IEEE 802.3 af/at (Mode-A)
  • System requirements- Mobile end device: latest iOS on iPhone/iPad, latest Android on smartphone/tablet Internet: High-speed landline broadband Internet connection, DSL, cable or fiber, no socks or proxy server Network: 802.11 b/g/n 2.4 GHz or Ethernet Network, with DHCP Compatible with all DoorBird IP Video Door Stations.
  • Scope of delivery: 1 x I/O Door Controller 1 x Network Cable 1 x Power supply unit (mains adaptor) with four country-specific adaptors (110 - 240 V AC to 15 V DC) 1 x DIN-Rail adapter 1 x Drilling template 1 x Small parts 1 x Installation manual
  • Approvals CE, FCC, UL, RoHS, IP50
  • Weather-proof: No
  • Weight 174 g
