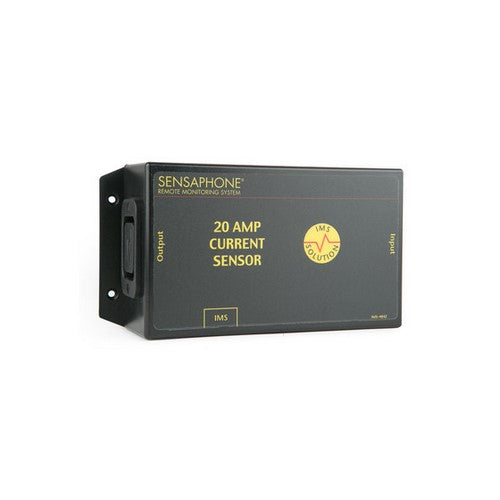

Sensaphone Current sensor max 20 amps




The IMS Current Sensors lets you monitor the current consumption of a particular device or circuit anywhere within the infrastructure. It reports the actual current flow in the circuit, allowing you to know the current draw from devices such as server racks, UPS, and generators.


Any failed generator starts are reported to you immediately. The IMS-4841 can monitor the current from 0-15 amps over a voltage range from 0-250VAC 50/60Hz and comes with IEC320 C14 inlet and C13 outlet connectors.


The IMS-4842 monitors current from 0-20 Amps over a voltage range from 0–250VAC 50/60Hz and comes with IEC320 C20 inlet and C19 outlet connectors.



Choose between a 15 AMP or 20 AMP current sensor
Monitor current consumption anywhere in the infrastructure
The Current Sensors connect to the IMS-4000 Host or Node via an RJ-45 cable

Product Specifications:

  • Operating Range: 5° to 104°F | -15° to 40°C
  • Accuracy: ± 2%
  • Power Connection: IEC320-C14 inlet | IEC320-C13 outlet
  • Connection: RJ45
  • Housing: Plastic
  • Dimensions: 7.3 x 2.1 x 3.6"” | 184 x 54 x 92mm
  • Sensor Series: IMS Solution
