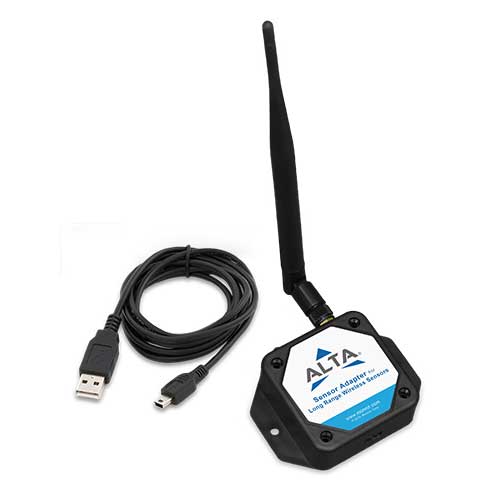

The ALTA wireless sensor adapter allows ALTA long range wireless sensors to communicate with local or online wireless sensor monitoring systems by connecting to a PC or 3rd party IoT gateways via USB connection.
Easy plug & play support for PC use. If the PC has an active internet connection and you wish to use it with the iMonnit online software, install the free Monnit Gateway application to pass sensor data to the online system.
With the online iMonnit software, you can easily configure your network, view collected sensor data and set alarms through SMS or e-mail, all from any web enabled browser. The system allows for complete configuration and customization at a sensor, local network, or client wide level.
The ALTA wireless sensor adapter is specifically designed to respond to the increasing market need for global technology that accommodates a variety of vertical M2M application segments and remote wireless sensor management solutions. With support for several leading 3rd party IoT gateways, it is easy to integrate ALTA long range wireless sensors with existing IoT platforms.
Monnit MNG2-9-WSA-USB Features1,200+ foot range12+ year battery life80+ wireless sensorsBank-level AES securityUp in 15 easy setupGlobal ready (900, 920, 868 & 433 MHz)
ALTA Wireless Sensor Adapter SpecificationsEnclosure Material: ABSCompatibility: Windows 10, 8.1, 8, 7 and VistaDevice Memory: 14,336 up messages (to gateway/server) 2,048 down messages (to sensors)Power Supply: Powered through USB output of PC Optional - External Power with Power SupplyOptional - RS232 Power (Call for more information)Max Operating Temperature: -40°C to +85°C (-40°F to +185°F)Connection Type: Universal Serial Bus (USB) Optional RS232 (115200 baudrate, 8 data bits, no parity, 1 stop bit, DB9 connector)Dimension: 3.500 in x 2.545 in x 1.007 in
ALTA 900 MHz SpecificationsOperating Frequency: 900 MHz Operating FrequencyCertifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
