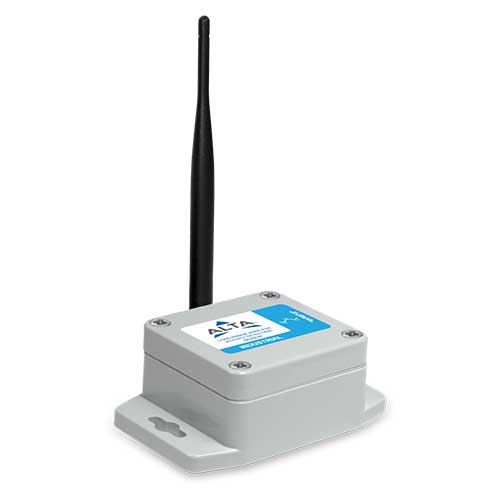

ALTA Industrial Tilt Detection Sensor, 900MHZ

MonnitSKU: MNS2-9-IN-AC-TT

Price:
$242.52

Description

The Tilt Detection Sensor is a digital, low-power, low-profile, MEMS-based sensor that detects changes in tilt on a single axis and reports data in the form of pitch based on user-configurable orientation changes. The Tilt Detection Sensor constantly monitors a single axis of rotation over a range of -179.9° to +180.0°. The data is displayed in degrees with 0.1° of resolution. If the sensor does not experience a detectable orientation change, the sensor will report the most recent measured data at a user-specified time interval. If a user-specified orientation change is detected, the sensor will report immediately. The sensor has two main modes of operation which determine what triggers the sensor to report. In Up/Down mode user-configurable angles are used to define regions for “Up”, “Down, and “Stuck”. Data is reported when the sensor moves between these regions. In Delta mode, the sensor triggers when the absolute difference between the current sensor angle and the last reported angle exceeds a user-defined Delta Value. The axis of rotation is user selectable. The axis image below indicates the axis of rotation and the arrow indicates the direction of increasing pitch angle (0° to 180° ? -180° to -0°). Example Data: Pitch: 18.21°, Rise/Fall Time:0 ms, Data State: down

Monnit MNS2-9-IN-AC-TT Features

  • 1,200+ foot range
  • 12+ year battery life
  • 80+ wireless sensors
  • Bank-level AES security
  • Up in 15 easy setup
  • Global ready (900, 920, 868 & 433 MHz)
  • Supply Voltage: 2.0–3.8 VDC
  • Current Consumption: 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode)
  • Operating Temperature: -7°C to +60°C (20°F to +140°F)
  • Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C (+50°F to +122°F)
  • Fastest Update Interval/Heart Rate in Any Configuration: Heartbeat: 1 minute
  • Measurement Resolution: 0.1°
  • Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)
  • Weight: 0.7 ounces
  • Certifications: 900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1. 868 and 433 MHz product tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950
  • Measuring Range: 0° to 180° to -180° to -0° (Rotating in positive direction)
  • Measurement Accuracy: 0.5°
  • Variation Specifications

  • Enclosure Rating: NEMA 1, 2, 4, 4x, 12 and 13 rated, sealed and weather proof
  • UL Rating: UL Listed to UL508-4x specifications (File E194432)
  • ALTA Industrial Specifications

  • Supply Voltage: 2.0 - 3.8 VDC
  • Battery Type: Replaceable 3.6V, 1800mAH (single AA sized)
  • Battery Life: At 1 hour heartbeat setting, battery will last up to 10 years.**
  • Max Operating Temperature: -40° to 85°C (-40° to 185°F)
  • Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
  • Solar Power Option: 3.0 VDC Solar Panel 600 mAH Rechargeable Battery (>2000 Charge Cycles - 80% of Initial Capacity)Charging Temperature Range: 0° to 45°C (32° to 113°F) Max Temperature Range: -20° to 60°C (-4° to 140°F)
  • Enclosure Material: IP65, NEMA 4X, CE rated, sealed, weatherproof enclosure
  • UL Rating: UL Listed to UL508-4x specifications (File E194432)
  • Dimension: 3.7 in x 2.32 in x 1.38 in
  • ALTA 900 MHz Specifications

  • Operating Frequency: 900 MHz Operating Frequency
  • Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)
  • Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*
  • Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
