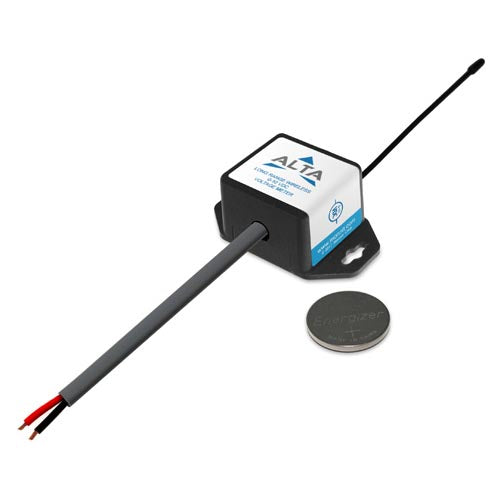

Monnit wireless voltage meters are capable of measuring the voltage off another device, battery, or sensor. This sensor is capable of measuring voltage up to 10 VDC by connecting the leads on the sensor to the positive and ground terminals of the device being measured.
Examples of interfacing devices include, but are not limited to: Strain Gauge, Pressure Transducer, RTD, Thermistor, or Thermocouple, Piezo Electric sensors, Photoresistor, Industrial Accelerometer, any kind of variable resistor, any kind of sensor that outputs a voltage, etc. If the device being measured is passive, the user must supply their own excitation voltage, as the Monnit sensor is really just a “voltage observer”. Cannot be used for AC voltage measurement.
Monnit MNS2-9-W1-VM-010 Features1,200+ foot range12+ year battery life80+ wireless sensorsBank-level AES securityUp in 15 easy setupGlobal ready (900, 920, 868 & 433 MHz)
Voltage Meter SpecificationsVoltage Range: 0 – 10 Volts DCResolution: ~5 mVUser Calibrated Accuracy: +/- .5% FSOpen Circuit Voltage: ~0.000 VoltsMaximum Rated Input Voltage: 20 VoltsLead Wire Length: 2 Wires, 1 ft. ( 12 in.), Red (+), Black (-), 18 AWG (Custom lengths available upon request)Voltage Resolution: 0.01 VDCAccuracy @ 25°C: @1V or above: +/- 1% (0.5% typical) @500mV: +/- 2% typical @250mV: +/- 4% typical @150mV: +/- 7% typicalMinimum Voltage Detected: 150mV
Variation SpecificationsWeight: 0.9 oz. (25.51 g)
ALTA Coin Cell SpecificationsBattery Type: Replaceable 3.0V (CR2032) Coin Cell BatteryDimension: 2.0 in x 1.125 in x 0.875 inMax Operating Temperature: -7°C to +60°C ( 20°F to +140°F )Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C ( +50°F to +122°F )Supply Voltage: 2.0 - 3.8 VDCBattery Life: At 1 hour heartbeat setting, coin cell battery will last up to 2 years. **Enclosure Technology: Monnit PinchPower™ Wireless Sensor EnclosuresEnclosure Material: ABS
ALTA 900 MHz SpecificationsOperating Frequency: 900 MHz Operating FrequencyCertifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
