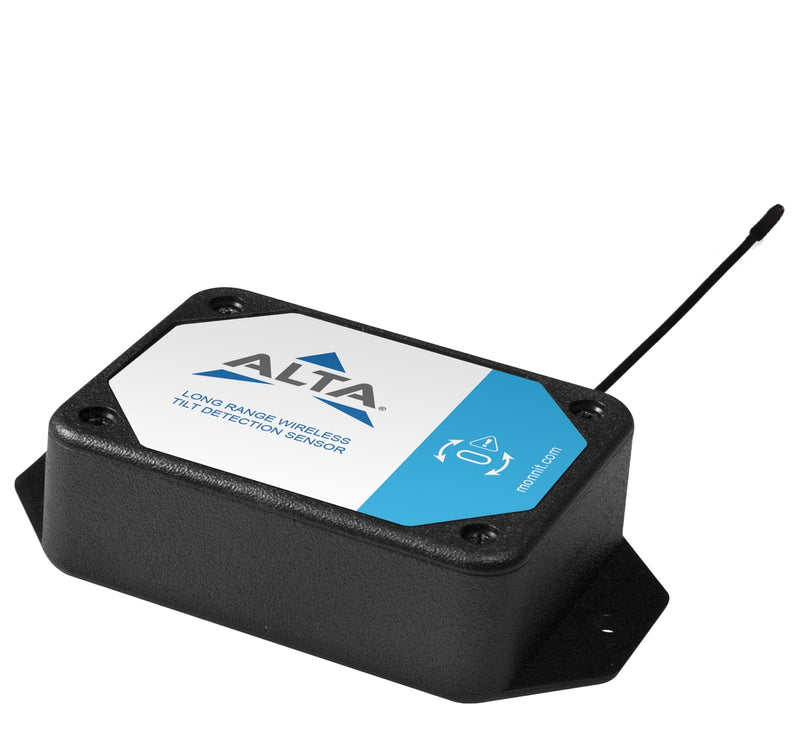

The Tilt Detection Sensor is a digital, low-power, low-profile, MEMS-based sensor that detects changes in tilt on a single axis and reports data in the form of pitch based on user-configurable orientation changes.
The Tilt Detection Sensor constantly monitors a single axis of rotation over a range of -179.9° to +180.0°. The data is displayed in degrees with 0.1° of resolution. If the sensor does not experience a detectable orientation change, the sensor will report the most recent measured data at a user-specified time interval. If a user-specified orientation change is detected, the sensor will report immediately. The sensor has two main modes of operation which determine what triggers the sensor to report. In Up/Down mode user-configurable angles are used to define regions for “Up”, “Down, and “Stuck”. Data is reported when the sensor moves between these regions. In Delta mode, the sensor triggers when the absolute difference between the current sensor angle and the last reported angle exceeds a user-defined Delta Value. The axis of rotation is user selectable. The axis image below indicates the axis of rotation and the arrow indicates the direction of increasing pitch angle (0° to 180° ? -180° to -0°).
Example Data: Pitch: 18.21°, Rise/Fall Time:0 ms, Data State: down
Monnit MNS2-9-W2-AC-TT Features1,200+ foot range12+ year battery life80+ wireless sensorsBank-level AES securityUp in 15 easy setupGlobal ready (900, 920, 868 & 433 MHz) Supply Voltage: 2.0–3.8 VDCCurrent Consumption: 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode)Operating Temperature: -7°C to +60°C (20°F to +140°F)Optimal Battery Operating Temperature (Coin Cell): +10°C to +50°C (+50°F to +122°F)Fastest Update Interval/Heart Rate in Any Configuration: Heartbeat: 1 minuteMeasurement Resolution: 0.1°Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)Weight: 0.7 ouncesCertifications: 900 MHz product; FCC ID: ZTL-G2SC1 and IC: 9794A-G2SC1. 868 and 433 MHz product tested and found to comply with: EN 300 220-2 V3.1.1 (2017-02), EN 300 220-2 V3.1.1 (2017-02) and EN 60950Measuring Range: 0° to 180° to -180° to -0° (Rotating in positive direction)Measurement Accuracy: 0.5°
Variation SpecificationsMax Operating Temperature Using AA Alkaline: -18°C to 55°C (0°F to 130°F) using alkalineMax Operating Temperature Using AA Lithium: -18°C to 55°C (0°F to 130°F) using alkaline
ALTA AA SpecificationsBattery Type: 2 Replaceable AA 1.5 V BatteriesDimension: 4.375 in x 2.470 in x 1.12 inSupply Voltage: 2.0 - 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)Battery Life: At 1 hour heartbeat setting, AA batteries will last up to 10 years.**Max Operating Temperature Using AA Alkaline: -18°C to 55°C (0°F to 130°F)Max Operating Temperature Using AA Lithium: -40°C to 60°C (-40°F to 140°F)Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)Enclosure Material: ABS
ALTA 900 MHz SpecificationsOperating Frequency: 900 MHz Operating FrequencyCertifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
