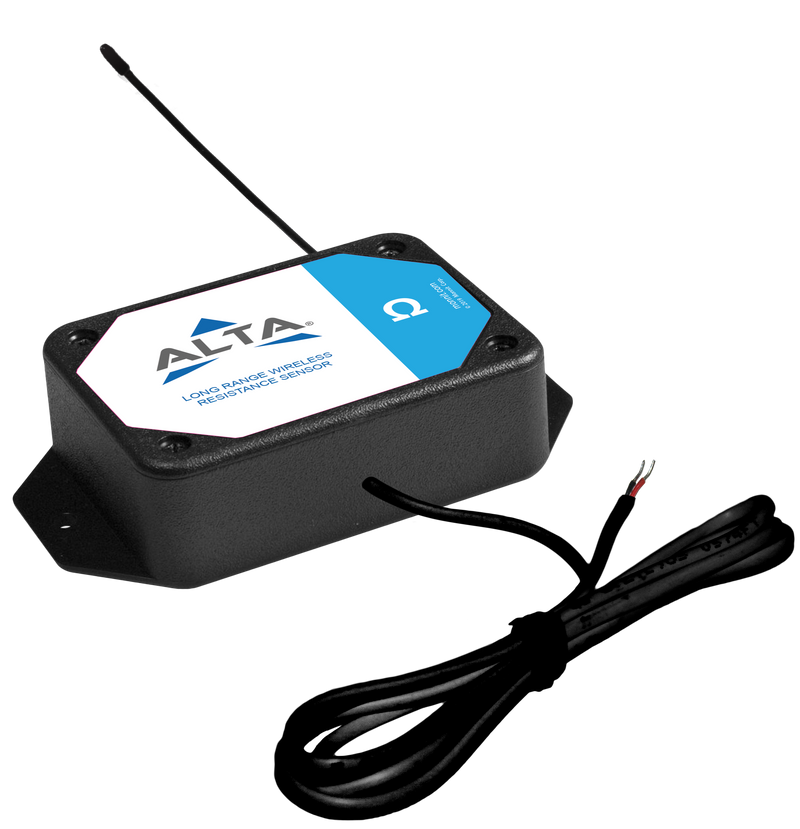

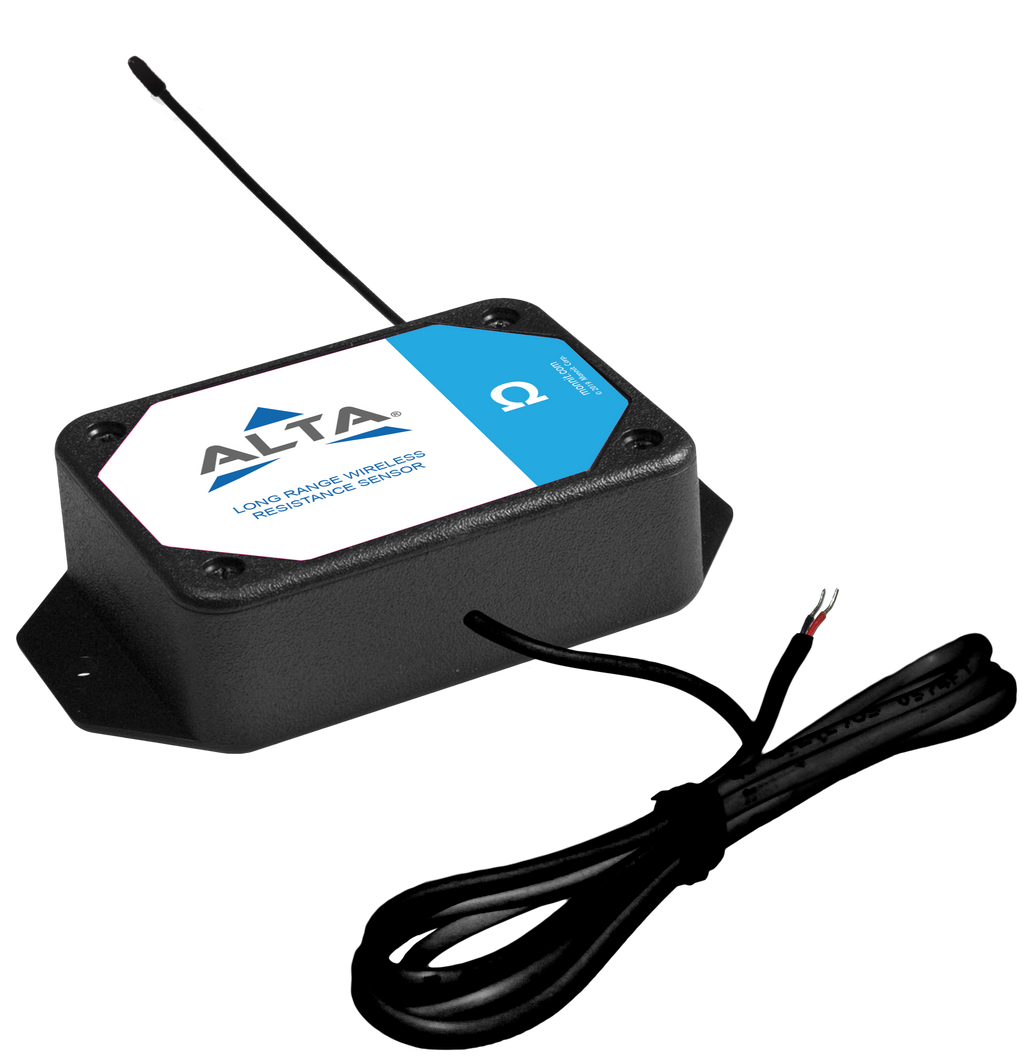

ALTA Wireless Resistance Sensor - AA Powered, 900MHZ

The ALTA Wireless Resistance Sensor reads the resistance across any resistive load and reports back the measured resistance. The resistance sensor leads are meant to connect to passive devices only, connecting the sensor leads to any voltage or power source that may damage the sensor. It is programmed to sleep for a user-given time interval (heartbeat) and then wake up, convert the analog data, mathematically compute the resistance, and transmit the data to the gateway, where it is then logged into the cloud service. The user can configure defined thresholds and have the system alert on threshold breaches.

Monnit MNS2-9-W2-RS-ST-L03 Features

1,200+ foot range

12+ year battery life

80+ wireless sensors

Bank-level AES security

Up in 15 easy setup

Global ready (900, 920, 868 & 433 MHz)

Resistance Sensor Specifications

Resistive Range (in Ohms): 0 – 145000

Specific Resistive Ranges (in Ohms): 0 – 530, 530 – 3500, 3500 – 27200, 27200 - 145000

Resolution: 2047 Unique Values Per Specific Range (11 bit): ~.25, ~1.71, ~13.3, ~70.8.

Accuracy: +/- 3% FS of Specific Range

User Calibrated Accuracy: +/- 1.5% FS of Specific Range

Lead Wire Length: 1 ft. ( 12 in.)

Variation Specifications

User Calibrated Pressure Accuracy: +/- 2% FS of Specific Range

Weight: 3.1 oz. (87.88 g) with 3 ft. (0.91 m) lead

ALTA AA Specifications

Battery Type: 2 Replaceable AA 1.5 V Batteries

Dimension: 4.375 in x 2.470 in x 1.12 in

Supply Voltage: 2.0 - 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)

Battery Life: At 1 hour heartbeat setting, AA batteries will last up to 10 years.**

Max Operating Temperature Using AA Alkaline: -18°C to 55°C (0°F to 130°F)

Max Operating Temperature Using AA Lithium: -40°C to 60°C (-40°F to 140°F)

Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)

Enclosure Material: ABS

ALTA 900 MHz Specifications

Operating Frequency: 900 MHz Operating Frequency

Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)

Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*

Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
