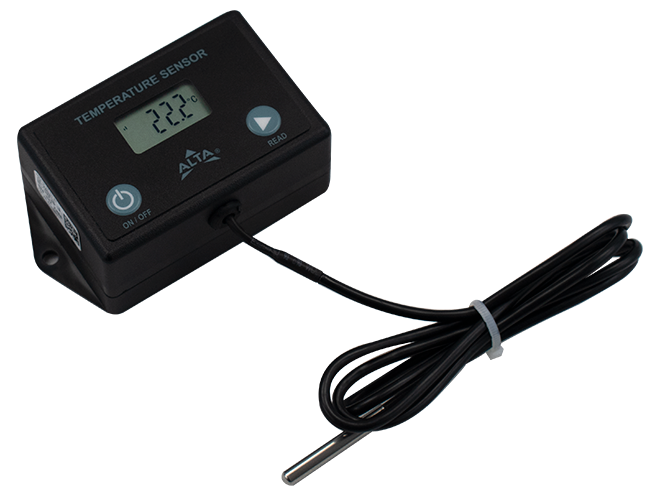

ALTA Digital Temperature Sensor w/ 3 ft Probe, AA Battery Powered, 900MHZ

MonnitSKU: MNS2-9-W2-TS-SD-L03



The ALTA Digital Temperature Sensor assesses the temperature of whatever environment the probe is in. At the push of a button, temperature readings are displayed on the device's digital display and sent to iMonnit software through a Monnit gateway(purchased separately), creating an easy-to-read log of current and past readings.

Monnit MNS2-9-W2-TS-SD-L03 Features

  • 1,200+ foot range
  • 12+ year battery life
  • 80+ wireless sensors
  • Bank-level AES security
  • Up in 15 easy setup
  • Global ready (900, 920, 868 & 433 MHz)
  • Thermistor Specifications

  • Power Supply: 2.0-3.8 VDC (AA alkaline or lithium batteries)
  • Current Consumption: 0.2 µA (sleep mode), 0.7 µA (RTC sleep), 570 µA (MCU idle), 2.5 mA (MCU active), 5.5 mA (radio RX mode), 22.6 mA (radio TX mode)
  • Optimal Battery Operating Temperature: 0°F to 130°F (-18°C to 55°C) using alkaline -40°F to 185°F (-40°C to 85°C) using lithium
  • Operating Temperature: +50°F to +122°F (+10°C to +50°C)
  • Device Memory: Up to 3200 sensor messages
  • Security: Encrypt-RF® (256-bit key exchange and AES-128 CTR)
  • Measuring Range: -40°F to +257°F (-40°C to +125°C)
  • Accuracy: +/- 1.8° F (1° C)
  • User Calibrated Accuracy: +/- 0.45° F (± 0.25° C)
  • Resolution: 0.1° F (0.1° C)
  • Response Time: 15 sec max
  • Lead Wire Length: Lead Length: 3 ft or 10 ft (Contact Monnit for custom length options)
  • Storage Temperature:: -4°F to 158°F (-20°C to 70°C)
  • Visual Confirmation: 14.0 mm x 26.0 mm
  • Variation Specifications

  • Weight: 3.08 oz. (87.32 g) - with 3 ft. (0.91 m) lead
  • ALTA AA Specifications

  • Battery Type: 2 Replaceable AA 1.5 V Batteries
  • Dimension: 4.375 in x 2.470 in x 1.12 in
  • Supply Voltage: 2.0 - 3.8 V (2 x AA 1.5V Batteries or Optional Power Supply)
  • Battery Life: At 1 hour heartbeat setting, AA batteries will last up to 10 years.**
  • Max Operating Temperature Using AA Alkaline: -18°C to 55°C (0°F to 130°F)
  • Max Operating Temperature Using AA Lithium: -40°C to 60°C (-40°F to 140°F)
  • Optimal Battery Operating Temperature: +10°C to +50°C (+50°F to +122°F)
  • Enclosure Material: ABS
  • ALTA 900 MHz Specifications

  • Operating Frequency: 900 MHz Operating Frequency
  • Certifications: Complies with Part 15 of the FCC Rules. (FCC ID: ZTL-G2SC1)Complies with Industry Canada standards. (IC: 9794A-G2SC1)
  • Device Range: Device Range Up to 1,200 ft. non-line-of-sight, wireless device range*
  • Security: Encrypt-RF® (Diffie-Hellman Key Exchange + AES-128 CBC)
