Mier DA-500 Controller Only

Mier ProductsSKU: DA500CP

Price:
$299
Stock:
In stock

Description

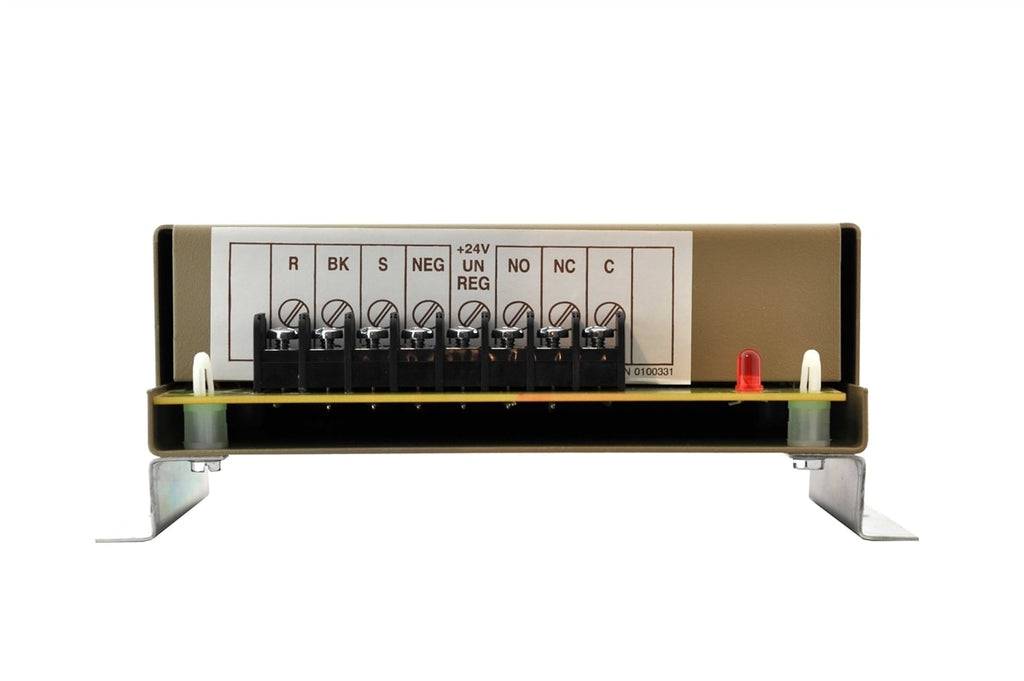

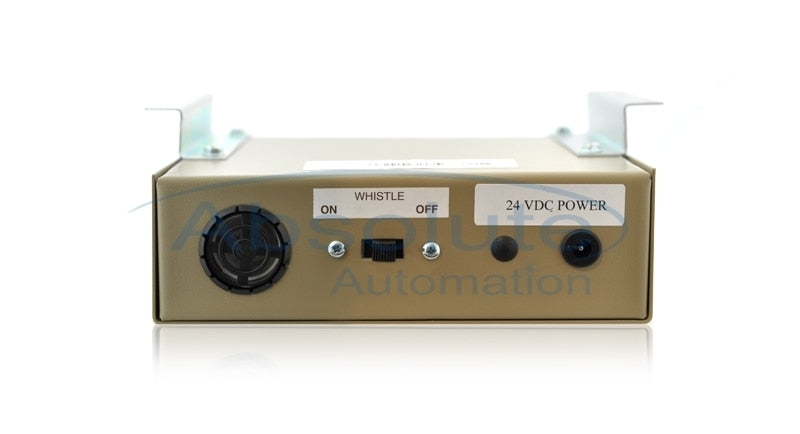

Mier DA500CP Driveway Alarm Control Panel

The Mier Products DA500CP control panel has a 24V output as well as a dry contact output you can choose between to activate different alarms, sirens, chimes etc.

Use the DA500CP controller with a Mier magnetic driveway alarm probe to detect vehicles entering or leaving your driveway. The driveway probe sends an alarm signal up to the wire back to the control box in your home which sounds a whistle to alert you. The probe only detects metal so you will never receive false alerts from animals, people etc. The sensitivity of the probe is adjustable at the control box, as well as the length of time that the whistle will sound.

For a more pleasant sounding chime tone please consider an additional Mier wired or wireless chime. The Mier control panel can be used with the DA078 and DA066MP, DA655 or DA052V.

The DA500CP may also be used as a replacement for failed Winland VAL1 systems, where the driveway probe is still functional but the control panel is not. If you are splicing underground wires be sure to also order a KLICKITC8816 burial splice kit.

* Please note this is the control panel only. If you wish to purchase a complete system please see the DA500 driveway alarm.

Mier DA500CP Driveway Alarm Control Panel - Specifications

  • Input -- 120 VAC, 50-60Hz, 3.6 Watt
  • Output -- 24 VDC at 100 Milliamps or: Dry Contact Relay - 24V/1AMP Maximum
  • Surge protected from transients
  • Adjustable sensor sensitivity
  • Adjustable time control for electronic whistle
  • Operating temperature -- 20 degree F to 160 degree F
  • Weight -- 6 pounds
  • Operating Probe resistance - 900-1100 ohms

Mier DA500CP Driveway Alarm Control Panel - Included

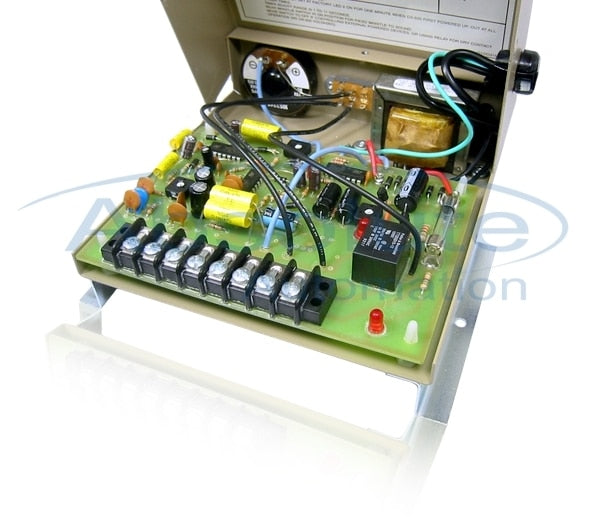

  • Solid-state Master Control Panel
  • Electronic whistle with œon-off� switch
  • Red LED power-on indicator
  • UL listed transformer and cord
  • SPDT relay output built-in

1 x DA500CP Control Panel (with power supply)

Chime Tone Mier Whistle
Driveway Alarm Manual Mier Driveway Alarm Manual

Input -- 120 VAC, 50-60Hz, 3.6 Watts

Output -- 24 VDC at 100 Milliamps or: Dry Contact Relay - 24V/1AMP Maximum

Surge protected from transients

Adjustable sensor sensitivity

Adjustable time control for electronic whistle

Operating temperature -- 20 degree F to 160 degree F

Weight -- six (6) pounds

Operating Probe resistance - 900-1100 ohms
