Dakota Alert UTRE-4K-PLUS Long Range Wireless Doorbell, Door/Window Contact with Relay

Save $20
Dakota AlertSKU: UTRE-4K-PLUS

Price:
$119.99 $139.99

Description

Dakota Alert UTRE-4K-PLUS Long Range Wireless Doorbell and Door Window Open Alert with Relay

The UTRE-4K-PLUS offers the same great features as the UTDCR4000 with a wireless range of up to 1 mile* This wireless weatherproof system can be used in homes, schools, small businesses, farms and more.

It also adds a 12VDC output and two relay outputs that can be used to trigger strobes, sirens or additional remote chimes. Plus they can also be used to connect to an alarm system or the SWITCHSPOT WiFi email/text alert device.

The universal push button transmitter also has a "dry contact" input so an external trigger can be used to set off the system.

The Dakota Alert Long Range Wireless Push button and Door/Window Sensor can be used in three different modes:

  1. Wireless Doorbell Button - In this mode, the doorbell button is mounted where needed.
  2. Wireless Door Windows Open Sensor - in this mode the included magnetic sensor is mounted on a door or window to detect when it has opened.
  3. Wireless Universal Transmitter - in this mode there is an input on the wireless transmitter that accepts a "contact closure".

In any of these modes, when triggered, a wireless signal is sent to the wireless receiver where the LED light will flash and your choice of tunes/tones will be played.

Select from these available tones:

  • Ding Dong (high)
  • Ding Dong (low)
  • Westminster
  • Fur Elise
  • Alarm/Siren
  • Coo Coo Clock
  • Bird Chirping
  • Twinkle Twinkle
  • William Tell
  • Cannon in D
  • Morning
  • Toreador March

Compatible with additional DCR4000 or RE-4K-PLUS receivers for notification in every room of the house, in the garage or shop. Up to 16 additional transmitter/sensors may be added such as the UT4000, DCMT4000, DCPT4000 and BBT4000.

Dakota UTRE-4K-PLUS Wireless Doorbell Button Transmitter Specifications

  • Can be activated using push button or terminal inputs (N/O or N/C)
  • Can be mounted as a doorbell button or used as a help call button by the bedside
  • Battery required: 3 Volt Lithium (included)
  • Wireless Range: Up to 1 Mile or 5280 feet*
  • Weather Resistant (suitable for outdoor use)
  • Built-in Magnetic Reed Switch and included magnet for doors and windows, closets, cupboards or drawers

Dakota UTRE-4K-PLUS Wireless Chime Specifications

  • Twelve Different Chimes/Tones
  • Up to 16 transmitters supported, each with its own tone
  • 4 level volume Control
  • LED Indicator Lights
  • 2 x Form C relay outputs rated up to 3A @ 30 VDC
  • 1 x 12 VDC output rated up to 400mA
  • Operating Voltage - 12VDC - Power Supply Included
  • Frequency - 433.92 MHz

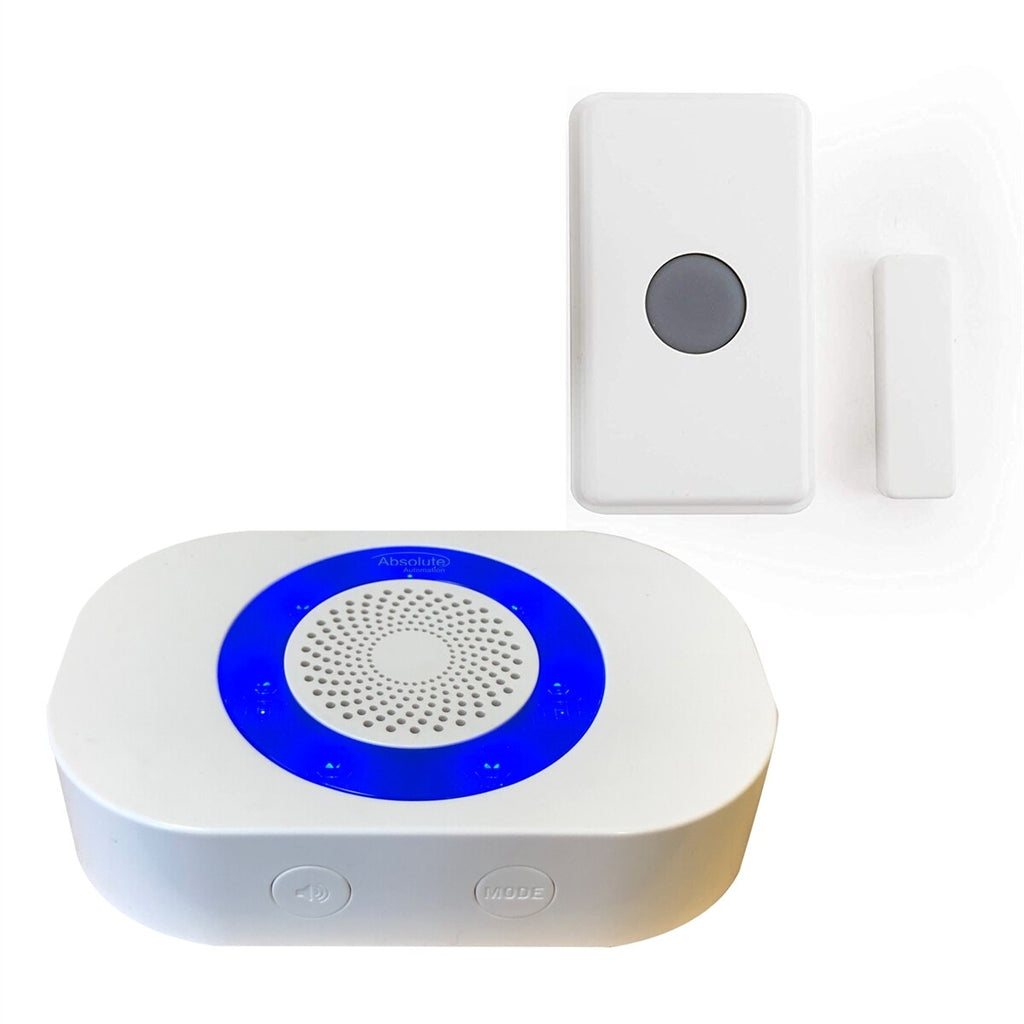

Dakota Alert Long Range Doorbell Includes

  • 1 - Dakota Alert UT4000 Transmitter with battery
  • 1 - Dakota Alert RE-4K-PLUS Wireless Receiver
  • 1 - Plug in power supply for receiver

*Wireless range is direct line-of-sight without interference. Actual range will be reduced by interference and structures.



NOTE: RELAY CONTACTS ARE RATED FOR LOW VOLTAGE DC ONLY.  DO NOT CONNECT HIGH VOLTAGE OR AC POWER TO THE OUTPUT RELAYS.
