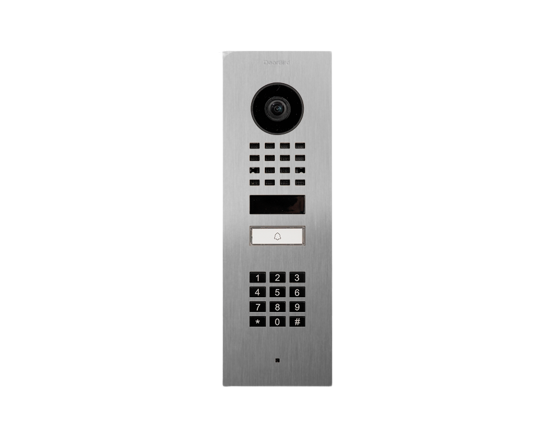

Doorbird Compact IP Video Door Station w/ Keypad, Flush Mount, Stainless Steel

DoorBirdSKU: D1101KV-FL



DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

Doorbird Compact IP Video Door Station w/ Keypad, Flush Mount, Stainless Steel Features:


  • Front panel 3 mm (0.12 in) For further materials and colours see material board and Online Shop.
  • Mounting housing (backbox) Stainless steel
  • Mounting type Flush-mounted, surface-mounted version sold separately
  • Call button Plastic Metal cover plate and engraving available separately, see
  • Nameplate Illuminated
  • Keypad Module:
    12 keys, illuminated, configurable via App, e.g.
    • Individual PIN codes
    • Individual events (e.g. switch a relay, HTTP(s) request)
    • Individual schedules
    • Up to 500 PIN codes manageable
  • Power supply 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
  • Weight 1095 g
  • Connectors
    • LAN/PoE (T+, T-, R+, R-)
    • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
    • External input for external door opener button
    • 15 V DC input (+, -), max. 15 W
  • Protection class IP65, IK08
  • Dimensions 263,00 x 85,00 x 26,7 mm (H x W x D) 10.35 x 3.35 x 1.05 in (H x W x D)
  • Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
  • Scope of delivery
    1x Main Electrical Unit
    1x Front panel
    1x Flush-mounting housing (backbox)
    1x Power supply unit (mains adaptor) with up to 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
    1x RJ45 adapter
    1x Screwdriver
    1x Quickstart guide with Digital Passport
    1x Installation manual
    1x Small parts
  • Warranty: see


  • System requirements
    Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
    Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
    Network: Ethernet Network, with DHCP
  • Recommended installation height: Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.


  • Camera HDTV 1080p, dynamic (VGA – HDTV)
  • Lens High-end ultra wide-angle hemispheric lens 180° (D), 150° (H), 82° (V), straightened, IR-capable
  • Night vision Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)


  • Audio components: Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
  • Audio streaming: Two-way, full duplex


  • Ethernet PoE 802.3af Mode-A, 10/100 Base-T
  • WiFi 2.4 GHz b/g/n
  • Supported protocols HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM


  • Type: Active
  • Detection angle 80° (H), 50° (V)
  • Range 1 - 6 m (3.3 - 19.7 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
  • Technology 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
  • Configuration
    Via App, e.g.
    • Range (1 - 6 m / 3.3 - 19.7 ft)
    • Movement direction (coming, leaving, both)
    • Individual events (e.g. switch a relay, push notification, SIP call [audio/video], HTTP(s) requests)
    • Individual schedules


  • WiFi 2.4 GHz
  • Bluetooth: Bluetooth Low Energy (BLE), compatible with DoorBird Bluetooth Keyfob Remote A8007
  • Sensor 24 GHz, can be disabled


  • Partner integrations:see
  • API: see
  • Simultaneous video streams One, for event-based recording


  • Sold separately: see
