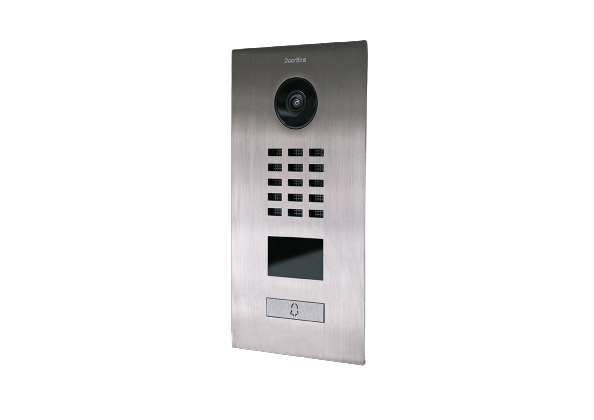

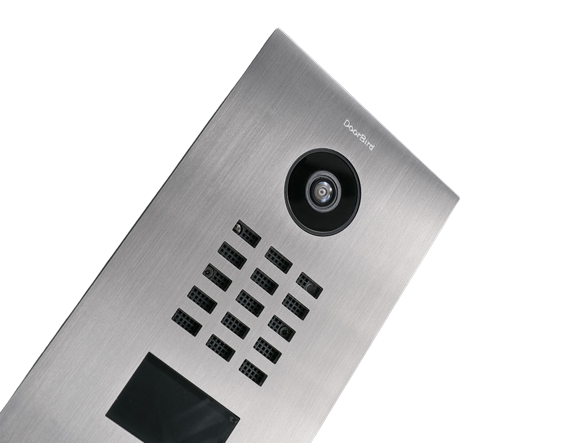

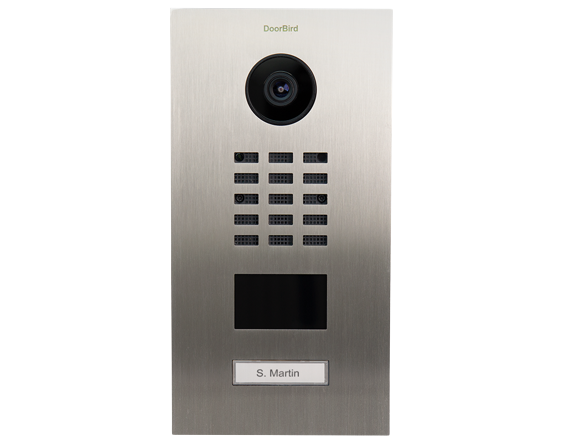

DoorBird IP Video Door Intercom, Stainless Steel

DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

DoorBird IP Video Door Intercom, Stainless Steel Specifications:

GENERAL

• Front panel 3 mm (0.12 in) Available in over 50 RAL colors and surfaces including stainless steel V2A / V4A (see material guide), Graphite Black (Raven Polar)
• Mounting type Flush- or surface-mounted, mounting housing sold separately
• Call button Illuminated
• Nameplate Plastic. Engravable metal nameplate sold separately, see www.doorbird.com/buy
• Power supply 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
• Weight 767 g

• Sold separately
  •Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) – EAN 4260423867314
  •Surface-mounting housing, flush-mounting housing, Protective Hood
  •See www.doorbird.com/buyConnectors
  • RJ45, for LAN/PoE
  • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
  • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
  • External input for external door opener button
  • 15 V DC input (+, -), max. 15 W
  • Relays can be expanded / detached with DoorBird I/O Door Controller
• Weather-proof Yes, IP65
• Approvals IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471
• Dimensions 253 x 131 x 48,75 mm (H x W x D) 9.96 x 5.16 x 1.92 in (H x W x D)
• Operating conditions: -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non condensing)
• Scope of delivery
  1x Main Electrical Unit
  1x Front panel
  1x RFID key fob
  1x Screwdriver
  1x Quickstart guide with Digital Passport
  1x Installation manual
  1x Small parts
• Warranty: see www.doorbird.com/warranty

CURRENT SYSTEM REQUIREMENTS

• System requirements
  Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
  Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
  Network: Ethernet Network, with DHCP
• Recommended installation height: Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.

VIDEO

• Camera HDTV 720p, dynamic (VGA – HDTV)
• Lens: High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
• Night-vision: Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm)

AUDIO

• Audio components: Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
• Audio streaming Two-way, full duplex

NETWORK

• Ethernet RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T
• Supported protocols HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM

MOTION SENSOR

• Type: Active
• Detection angle 54° (H), 70° (V)
• Range 1 - 10 m (3.3 - 32.9 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
• Technology 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
• Configuration
  Via App, e.g.
  • Range (1 - 10 m / 3.3 - 32.9 ft)
  • Movement direction (coming, leaving, both)
  • Individual events (e.g. switch a relay,push notification, SIP call [audio/video], HTTP(s) notification)
  • Individual schedules

RFID

• Type Active Reader Passive Tag (ARPT) system
• Standard ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
• Frequency 125 KHz
• Range 0 - 3 cm, depends on environment
• Antenna Internal
• Compatible Transponder:
  RFID key fobs, sold separately, see www.doorbird.com/buy
  Up to 500 tags manageable

• Configuration
  Via App, e.g.
  • Tag (add, delete)
  • Individual events (e.g. switch a relay, SIP call [audio/video], HTTP(s) notification)
  • Individual schedules
  • RFID history available for 60 minutes in the app

INTEGRATED WIRELESS MODULES

• RFID 125 KHz
• Sensor 24 GHz, can be disabled

THIRD-PARTY INTEGRATION (DOORBIRD CONNECT)

• Partnerintegrations: see www.doorbird.com/connect
• API: see www.doorbird.com/api
• Simultaneous video streams One, for event-based and continuous recording

OPTIONAL ACCESSORIES

• Sold separately
  •Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) – EAN 4260423867314
  •Surface-mounting housing, flush-mounting housing, Protective-Hood
  •See www.doorbird.com/buy
