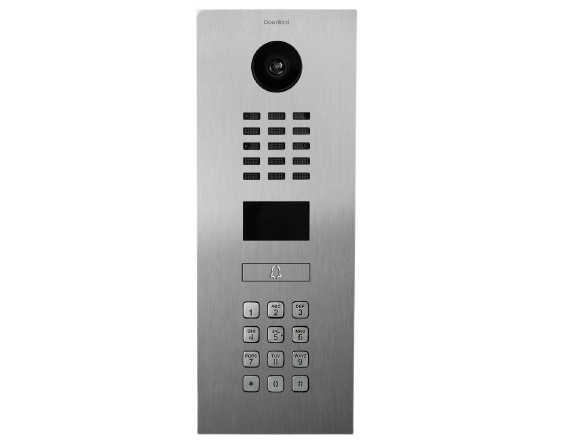

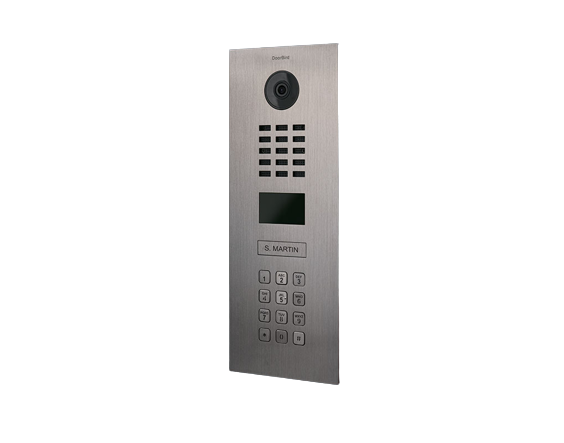

DoorBird IP Video Door Station, 1 Call Button, Keypad, Stainless Steel

DoorBirdSKU: D2101KV



DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

DoorBird IP Video Door Station, 1 Call Button, Keypad, Stainless Steel Specifications:


  • Front panel 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A and V2A with bronze and titanium finish, DB 703, RAL 7016, Graphite Black (Raven Polar)
  • Mounting type Flush- or surface-mounted, mounting housing sold separately
  • Power supply 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
  • Call button: Illuminated
  • Nameplate Stainless Steel, Bell symbol, engraved through material for illumination, self-adhesive. Engravable metal nameplate sold separately, see
  • Keypad Module
    12 keys, illuminated, configurable via App, e.g.
    • Individual PIN codes
    • Individual events (e.g. switch a relay, HTTP(s) request)
    • Individual schedules
    • Up to 500 PIN codes manageable
    • 30 most recent entries viewable in history
  • Weight 1510 g
  • Connectors
    • RJ45, for LAN/PoE
    • Bistable latching relay #1, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
    • Bistable latching relay #2, max. 24 V DC / AC, 1 Ampere, e.g. for electric door opener
    • External input for external door opener button
    • 15 V DC input (+, -), max. 15 W
    • Relays can be expanded / detached with DoorBird I/O Door Controller
  • Weather-proof: Yes, IP65
  • Approvals IP65, CE, FCC, IC, RoHS, IK08, REACH, IEC/EN 62368, IEC/EN 62471
  • Dimensions 351,5 x 131 x 49,6 mm (H x W x D) 13.84 x 5.16 x 1.95 in (H x W x D)
  • Operating conditions -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
  • Scope of delivery
    1x Main Electrical Unit
    1x Front panel
    1x Nameplate for 1 call button, stainless steel, bell symbol
    1x Nameplate for 1 call button, plastic, transparent
    1x RFID key fob
    1x Screwdriver
    1x Quickstart guide with Digital Passport
    1x Installation manual
    1x Small parts
  • Warranty: see


  • System requirements
    Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
    Internet: High-Speed Landline Broadband Internet connection, DSL, cable or fiber optic, no socks or proxy server
    Network: Ethernet Network, with DHCP
  • Recommended installation height: Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.


  • Camera HDTV 720p, dynamic (VGA – HDTV)
  • Lens High-end ultra wide-angle hemispheric lens 180° (D), 140° (H), 100° (V), straightened, IR-capable
  • Night-vision Yes, light sensor, automatic IR-cut filter, 12 Infrared LEDs (850 nm)


  • Audio components Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
  • Audio streaming Two-way, full duplex


  • Ethernet RJ45 jack, PoE 802.3af Mode-A, 10/100 Base-T
  • Supported protocols HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM


  • Type: Active
  • Detection angle 54° (H), 70° (V)
  • Range 1 - 10 m (3.3 - 32.9 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
  • Technology: 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
  • Configuration
    Via App, e.g.
    • Range (1 - 10 m / 3.3 - 32.9 ft)
    • Movement direction (coming, leaving, both)
    • Individual events (e.g. switch a relay, push notification, SIP call [audio/video], HTTP(s) notification)
    • Individual schedules


  • Type: Active Reader Passive Tag (ARPT) system
  • Standard ISO/IEC 18000-2:2009 Part 2, EM4100, EM4102
  • Frequency 125 KHz
  • Range 0 - 3 cm, depends on environment
  • Antenna Internal
  • Compatible Transponder RFID key fobs, sold separately, see Up to 500 tags manageable
  • Configuration
    Via App, e.g.
    • Tag (add, delete)
    • Individual events (e.g. switch a relay, SIP call [audio/video], HTTP(s) notification)
    • Individual schedules
    • RFID history available for 60 minutes in the app


  • RFID 125 KHz
  • Sensor 24 GHz, can be disabled


  • Partnerintegrations: see
  • API: see
  • Simultaneous video streams One, for event-based and continuous recording


  • Sold separately
    •Power supply unit (mains adaptor) with 4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC) – EAN 4260423867314
    •Surface-mounting housing, flush-mounting housing, Protective-Hood
