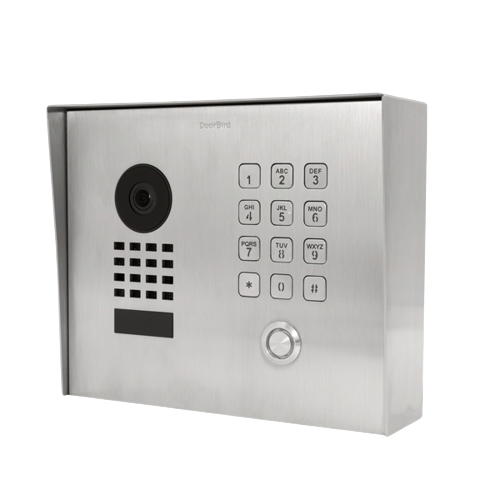

DoorBird IP Video Door Station, Classic, Surface-mount, Stainless steel

DoorBirdSKU: D1101KHV2A



DoorBird is the smart solution for your house entrance. Simply connect your DoorBird IP Video Door Station to your smartphone and talk to your visitor – anywhere you are. The IP Video Door Station can be used as a stand-alone unit or can be integrated into an existing Smart Home platform. Even existing classic installations such as an electric door opener can still be used and controlled via the DoorBird App.

DoorBird IP Video Door Station, Classic, Surface-mount, Stainless steel Specifications:


  • Front panel 3 mm (0.12 in) Available in brushed stainless steel V2A / V4A
  • Mounting housing (backbox) Stainless steel
  • Mounting type Surface-mounted, flush-mounted version sold separately
  • Call button Stainless-steel button with illuminated LED Ring
  • Keypad Module
    12 keys, illuminated, configurable via App, e.g.
    • Individual PIN codes
    • Individual events (e.g. switch a relay, HTTP(s) request)
    • Individual schedules
    • Up to 1000 PIN codes manageable
  • Power supply 15 V DC (max. 15 W) or Power over Ethernet (PoE 802.3af Mode-A)
  • Weight 2430 g
  • Connectors
    • LAN/PoE (T+, T-, R+, R-)
    • Bistable latching relay, max. 1-24 V DC/AC, 1 A, e.g. for electric door opener
    • External input for external door opener button
    • 15 V DC input (+, -), max. 15 W
  • Weatherproof: Yes, IP65
  • Approvals IP65, CE, FCC, IC, RoHS, REACH, IEC/EN 62368, IEC/EN 62471
  • Dimensions 182,00 x 219,00 x 72.50 mm (H x W x D) 7.17 x 8.62 x 2.85 in (H x W x D)
  • Operating conditions: -25 to +55°C / -13 to 131°F Humidity 10 to 85 % RH (non-condensing)
  • Scope of delivery
    1x Main Electrical Unit
    1x Front panel
    1x Surface-mounting housing (backbox)
    1x Power supply unit (mains adaptor) with up to
    4 country-specific outlet adaptors (110 - 240 V AC to 15 V DC)
    1x RJ45 adapter
    1x Screwdriver
    1x Quickstart guide with Digital Passport
    1x Installation manual
    1x Small parts
  • Warranty: see


  • System requirements
    Mobile device: Newest iOS on iPhone/iPad, newest Android on Smartphone/Tablet
    Internet: High-Speed Landline Broadband. Internet connection, DSL, cable or fiber optic, no socks or proxy server
    Network: Ethernet Network, with DHCP
  • Recommended installation height: Camera lens should be at a min. height of 145 cm (57 in). Before the installation please determine your optimal installation height.


  • Camera HDTV 1080p, dynamic (VGA – HDTV)
  • Lens High-end ultra wide-angle hemispheric lens 180° (D), 150° (H), 82° (V), straightened, IR-capable
  • Night vision Yes, light sensor, automatic IR-cut filter, Infrared LEDs (850 nm)


  • Audio components Speaker and microphone, noise reduction and echo cancellation (ANR, AEC)
  • Audio streaming Two-way, full duplex


  • Ethernet PoE 802.3af Mode-A, 10/100 Base-T
  • Supported protocols HTTP, HTTPS, SSL/TLS, Bonjour, DNS, RTSP, RTP, TCP, UDP, RTCP, ICMP, DHCP, ARP, SIP, DTMF (RTP [RFC-2833], SIP INFO [RFC-2976]), STM


  • Type Active
  • Detection angle 80° (H), 50° (V)
  • Range 1 - 6 m (3.3 - 19.7 ft), depends on environment, configurable in 1 m (3.3 ft) steps.
  • Technology 4D. Based on multiple integrated sensors and algorithms, e.g. Radio Frequency Energy (RFE)
  • Configuration
    Via App, e.g.
    • Range (1 - 6 m / 3.3 - 19.7 ft)
    • Movement direction (coming, leaving, both)
    • Individual events (e.g. switch a relay, push notification, SIP call [audio/video], HTTP(s) requests)
    • Individual schedules


  • Bluetooth: Bluetooth Low Energy (BLE), enabled with future firmware and App update
  • Sensor 24 GHz, can be disabled


  • Partner integrations: see
  • API: see
  • Simultaneous video streams: One, for event-based recording


  • Sold separately: see
