ELK-124 V3 Recordable Voice Annunciator Module

Elk ProductsSKU: ELK-124

Price:
$213.99

Description

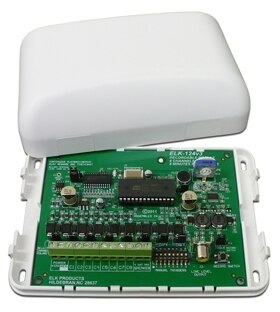

The ELK 124 (V3) is an eight (8) channel voice recordable module. Each individual channel can hold up to one (1) minute of recorded audio (voice, music etc.) for a total of eight (8) minutes of recordable audio. No PC is required for recording with a built in microphone and a "record" button built on. There is a line level output jack, channel activation switches and the module can play each channel once or be set to infinite repeat.

Features:

  • Eight Channels of Recordable Voice/Music.
  • Maximum record time is 8 minutes which may be divided between the number of channels required
  • Recordings are stored in non-volatile memory.
  • Each channel selectable for "+" or "-" triggering.
  • Each channel will accept a momentary trigger.
  • Continuous playback or "One Shot" settings.
  • Built-in condenser microphone for recording.
  • Adjustable speaker volume and current draw.
  • Powerful 24 watt audio amplifier for Speakers.
  • Line Level Output for Amplifiers and Paging Systems.
  • PC sound card interface connector.
  • Mounted inside ELK-PB1 plastic enclosure.
  • Lifetime Limited Warranty

1 x ELK 124 Voice and Siren Module

  • Operating Voltage: 11 to 14 Volts DC
  • Current Draw: .2 to 2 Amps, (depends on volume setting and speaker loading)
  • Sound Level: 122 db @ 1 meter, 14 vdc
  • Max. Speaker Loading: 4 Ohms
  • Max. Message Length: 1 minute per channel or 8 minutes for a combined single channel
  • Enclosure Size: 6.5" W x 4.375"H x 2"D, White Plastic
