Description
AVAILABLE SOON

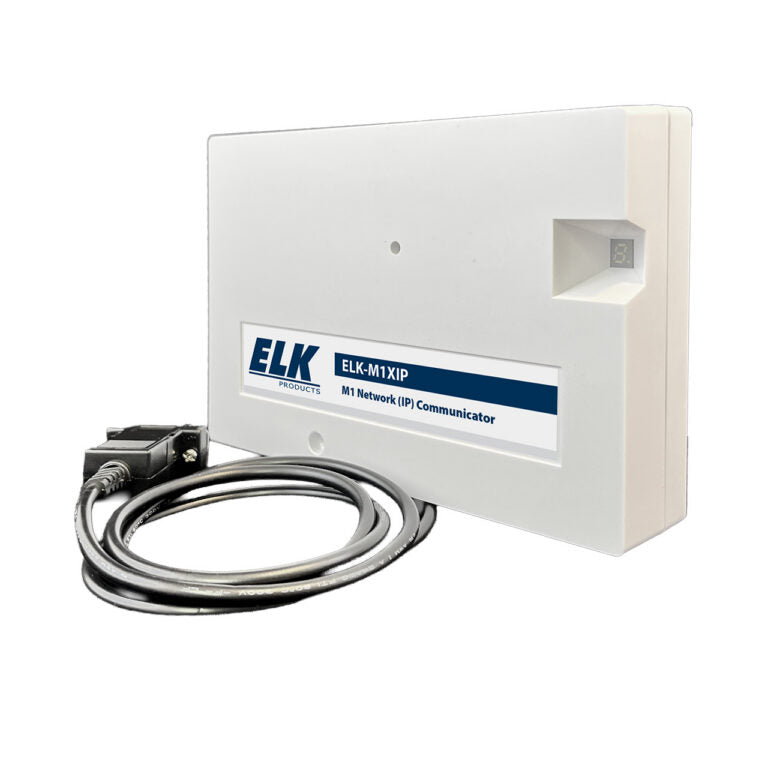

The new ELK-M1XIP adapts modern IP communication to your ELK M1 System. This part is a direct upgrade to the older ELK-M1XEP. This new module connects directly to the M1 main bord serial port bringing you the same trusted features of the older model alongside performance upgrades.
Features:
- Secure connection with password protection and SSL/TLS encryption
- Internet Monitoring and Reporting Capability
- Event notification via E-Mail through ElkConnect
- Syncs M1 panel time using ElkConnect
- Supports proxy connection for remote programming with ElkRP
- Flash Memory for Firmware Updating
Specs:
- Operating Power: 13.8 VDC
- Current draw: 50mA
- Board size: 6” x 3” x 0.6875”
- Housing Size: 6.402" x 4.352" x 1.188"
- Integrated 802.3 compliant 10/100 Mbit network interface
- RS232, DB9M 9-pin serial port connection to M1 RS232 port (port 0)
- RJ45 8-pin Network Jack
- LED Indicators for Power, Link, and Data
Includes:
- M1 Network (IP) Communicator
- Plastic Housing
- 4 #6 Plastic Anchors
- 4 #6 Pan Head Sheet Metal Screws
- DB9 Serial Cable Assembly (attached)
- Instructions
