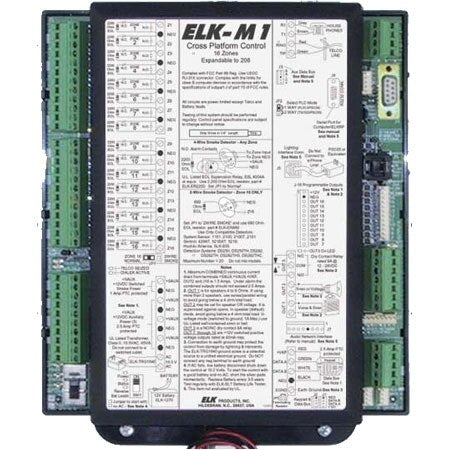

ELK M1G Control Board

Elk ProductsSKU: ELK-M1GCB



The Elk M1 Gold is a robust Cross Platform controller and is compatible with many other industry standard systems and protocols. The M1 has a 500+ word vocabulary built in for announcing alarms, systems statuses and for use when dialing out to the up to 8 phone numbers the built in dialer can alert of alarms or status changes. The system is perfect for alerting owners of events such as critical temperature levels, water leaks, children arriving home from school, etc.. The built in telephone control also allows owners to remotely control and arm or disarm zones.

For owners looking to access their M1 Gold via the internet the M1XEP Ethernet Interface is required.

1 x Elk M1GCB Control Board

Installation ManualElk M1 Manual
User GuideElk M1 User Guide

Flash Memory - Allows field updates to firmware electronically

Supports 4-wire (any zone) and 2-wire (zone 16) smoke detectors

Includes fire alarm verification routine¢ Plug-in terminal blocks make service and pre-wires a snap!

Hardware "watchdog" and nonvolatile EEPROM memory

Supervised phone line, alarm output and aux. over current


True V.22 bis Modem for fast, reliable upload/download

Optional Ethernet port for reporting operation / control or programming

Built-in telephone remote control makes any phone a keypad

Integrated Voice Dialer uses vocabulary or custom word/phrases

Digital Communicator formats: SIA, Contact ID, 4+2 and Pager

Installer Telephone (butt set) test feature

Elk-RP PC software includes "conflict resolution" to easily highlight differences between control and PC

Automation & Integration:

Create lifestyle enhancing comfort, convenience and security

Powerful "Whenever/And/Then" RULES Programming allows almost any imaginable operation.

No need to chain rules together.

Any single "Whenever" event can have one or more ANDs and THENs (conditions and commands).

Rules utilize easy to understand text based references

Control lighting using RS-232 serial or 2-way Power Line Control (PLC) ports

On, Off, Dim All On, All Off commands

Sunset/Sunrise calculation and activation

Transmit and receive custom serial ASCII messages

Issue commands to Distributed Audio Systems (Russound, Proficient, Nuvo)

Read temperature sensors and communicate with thermostats

Turn on Tasks, Lights, Outputs via Keypad or Telephone Remote

Power Supply:

Heavy Duty - 2.5 Amp power supply w/ 1 Amp continuous

Dynamic battery test

Master power switch and low battery disconnect

PTC (fuseless) resettable overload protection

Multiple auxiliary power terminals
