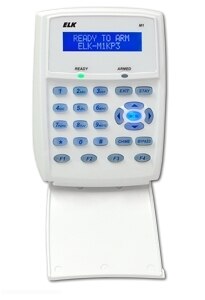

ELK M1KP3 Keypad

Elk ProductsSKU: ELK-M1KP3



The ELK M1KP3 Keypad can be used with the ELK M1 controllers. It is designed for surface mounting, is addressable and is compatible with 26 bit Wiegand proximity readers.


  • Blue/White Backlighted Hi-Contrast LCD Display
  • Four (4) Programmable Function Keys
  • Unique Menu Navigation/Direction Keys
  • Built-in Piezo Sounder with adjustable pitch
  • Accepts External 26 bit Wiegand ProxReader (Opt.)
  • Input for 1 Supervised Zone
  • One Programmable Switched Positive Voltage Output
  • Exit, Stay, Chime, and Bypass Keys
  • Programmable display of time & date
  • Displays system diagnostics and settings
  • Surface mount only

1 x ELK M1KP3 Keypad


  • Connection: 6 Pin Plug-in "Flying Lead" Connector (Included)
  • Color: White
  • Operating Voltage: 13.8 VDC
  • Current Draw: ~30 mA Idle (low back light level, sounder silent)
  • ~85 mA Fully Active (max. back light & sounder active)
  • Size: 3.97" x 5.425" x 1.19", does not cover electrical box
