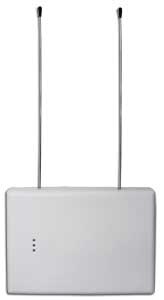

Elk M1XRFEG - Wireless Receiver for GE Transmitters

Elk ProductsSKU: ELK-M1XRFEG



The Elk M1XRFEG wireless receiver which can be used with both SAW and Crystal based transmitters. The M1XRFEG connects to the four wire data bus on the M1 panel and can monitor up to 144 wireless zones.

The M1XRFEG is designed to work with GE format 319.5 MHz frequency one way transmitters.


  • Adds up to 144 individual wireless zones (sensors/points)
  • Operates from the 4 wire RS485 Data Bus
  • Additional Receivers (up to 11) may be Connected to a single M1 or M1EZ8 Control for redundancy or greater coverage
  • Flash Memory for Updating of operating Firmware

1 x ELK M1XRFEG Wireless Receiver

  • Sensitivity: >105 dbm
  • Operating Temperature: 0 to +120 degrees F
  • Operating Voltage: 12 Volts D.C.
  • Current Draw: 70mA
  • Range: 300 to 500 ft. line of sight

NOTE: Walls or metal may reduce actual operating range.
