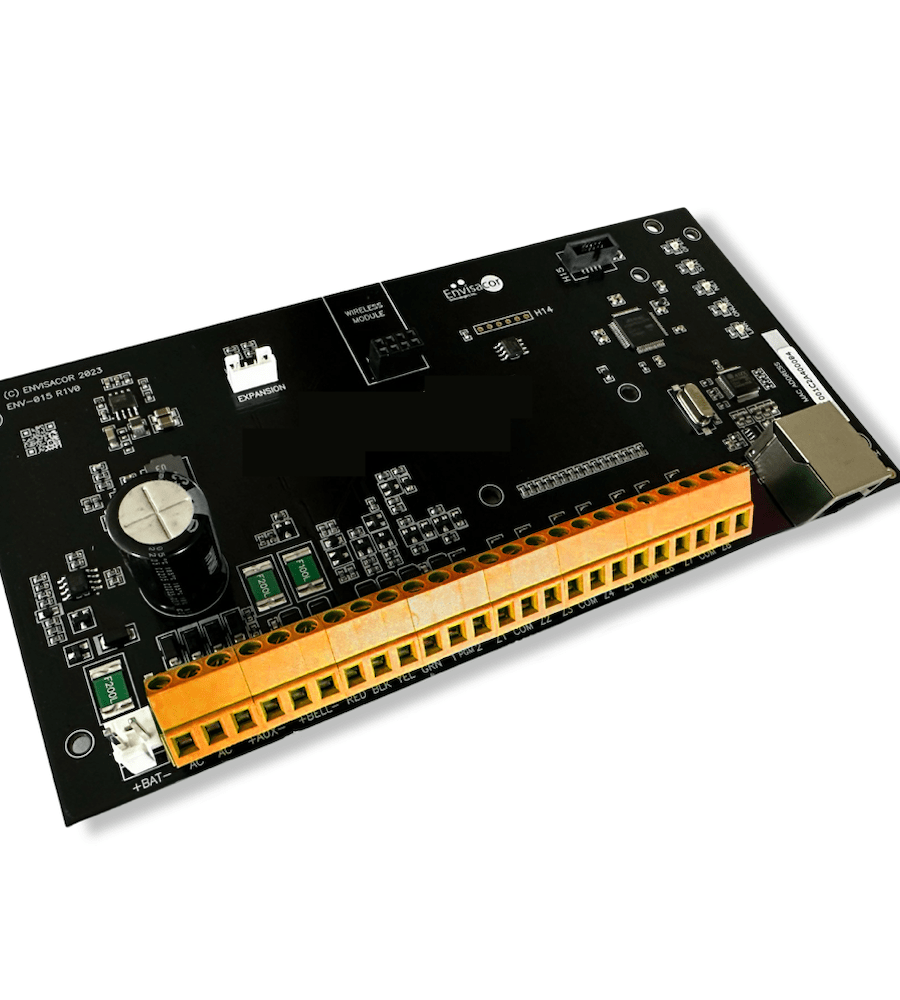

EyezOn UNO IP Hybrid Security Alarm System




The Eyezon UNO alarm system is perfectly suited for new installations or upgrades to older alarm systems.  It can be self monitored using the FREE iOS and Android apps, and also supports professional monitoring as an option.

UNO even works with Alexa and Google voice assistants for your convenience.

UNO has 8 wired zone connections on board with support for up to 128 wired zones using UNO8 expansion modules, or by adding a UNO-RF433 receiver module to support SOLO 433 MHz wireless sensors.

Replacing an older DSC powerseries system?   UNO is a drop-in replacement for most older DSC Powerseries systems and even supports many of the original DSC Powerseries keypads and zone expansion modules.  This includes the PK and RFK series keypads.

When used with a DSC RFK keypad or RF5108/RF5133 wireless receiver, UNO can support DSC 433 MHz wireless sensors.  (Only one wireless receiver can be supported - either DSC or UNO).

UNO comes standard with on board Ethernet so you can connect it to your Internet connection and use it with the free Eyezon cloud for local and remote monitoring and programming.

Add an optional Sidekick-LTE module for cellular communications (paid Eyezon plan required).

UNO fits in most alarm cabinets.  If you don't have one yet, consider the PC5002 for small installs that don't require additional expansion modules.

For new installs you will also need a power supply and battery.  We recommend TP4016 plug-in adapter for power and ELK-1250 battery as a minimum.


EyezOn UNO IP Hybrid Security Alarm System Features:

  • IP connectivity on board
  • LTE may be added using SIDEKICK-LTE module
  • May be self monitored and programmed via Eyezon portal
  • May be pro monitored via Eyezon or dealers
  • 8 Wired zones on board, expandable to 128 via UNO8 modules
  • Up to 8 partitions
  • Supports up to 128 users
  • 2 on-board PGM outputs
  • Mounts in a standard security enclosure (not included)
  • Supports full UL/ULC alarm monitoring over IP or cellular
  • Remotely upgradable to allow for new features and services
  • Amazon Alexa and Google Home compatible
  • FREE EyezOn App available on Google Play or iTunes store
  • Full remote control of all panel features from App on all partitions
  • Event logging
  • Event alerts by push notifications, email or optional paid SMS text
  • Connectors: 2 battery, 8 zone inputs, AC (16 VAC), Aux/Bell, Keypad/module Bus 4-wire
  • Dimensions: 190 mm (7-1/2″) x 95 mm (3-3/4″)


Included in box:
    • UNO™ IP alarm panel
    • Battery connector cable
    • Zone and battery resistors
    • Nylon stand-offs
    • Installation guide
