Heavy Duty Low Pressure Switch

SensaphoneSKU: FGDD30001

Price:
$139
Stock:
In stock

Description

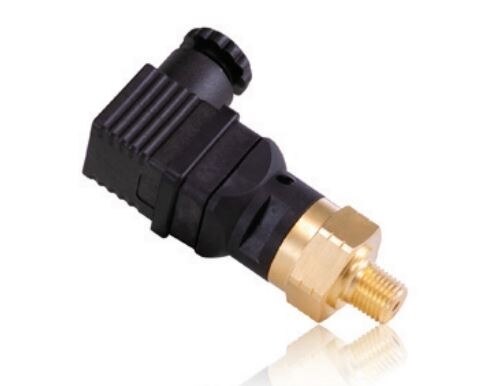

FGDD30001 Heavy Duty Low Pressure Switch

The FGDD30001 is a heavy-duty low-pressure switch that's designed for the pneumatics industry. The switch can be adjusted from 5 to 30 PSI and comes pre-set for 15PSI. It has a mechanical life excess of 1,000,000 cycles and has a maximum overpressure of 350 PSI. The FGDD30001's tough and rugged compact brass housing has an IP65 weather resistance rating and can withstand temperatures as low as -20 F to as high as 180 F.

FGDD30001 Heavy Duty Low-Pressure Switch Specifications:

  • Set Point Ranges from 5 to 30 PSI
  • Maximum Overpressure of 350 PSI
  • Rugged compact brass housing
  • SPDT Switch (up to 5 Amp)
  • IP 65 Environmental protection
  • Repeatability: ± 2% FS
  • Mechanical Life of 1,000,000 Cycles
  • Temperature Range: -20¢180°F

  • Set Point Ranges from 5 to 30 PSI
  • Maximum Overpressure of 350 PSI
  • Rugged compact brass housing
  • SPDT Switch (up to 5 Amp)
  • IP 65 Environmental protection
  • Repeatability: ± 2% FS
  • Mechanical Life of 1,000,000 Cycles
  • Temperature Range: -20¢180°F
