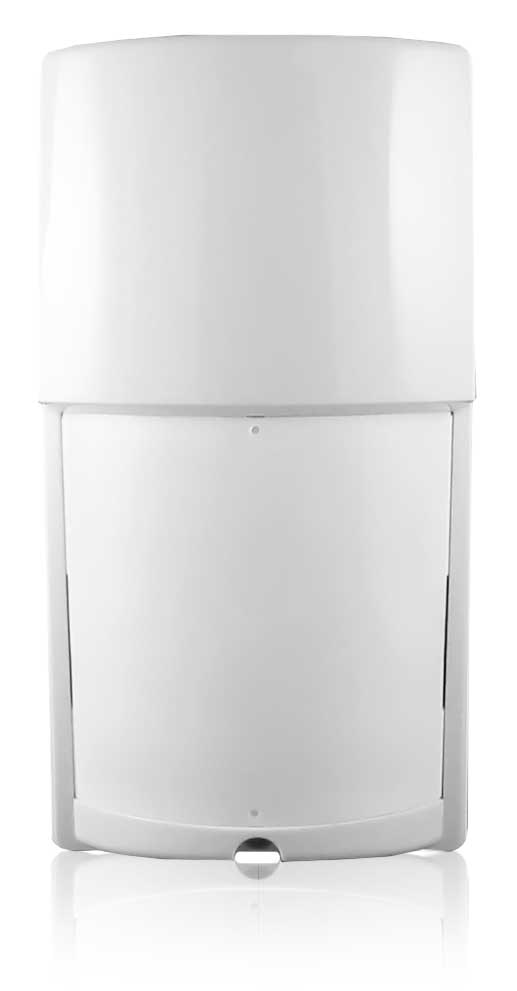

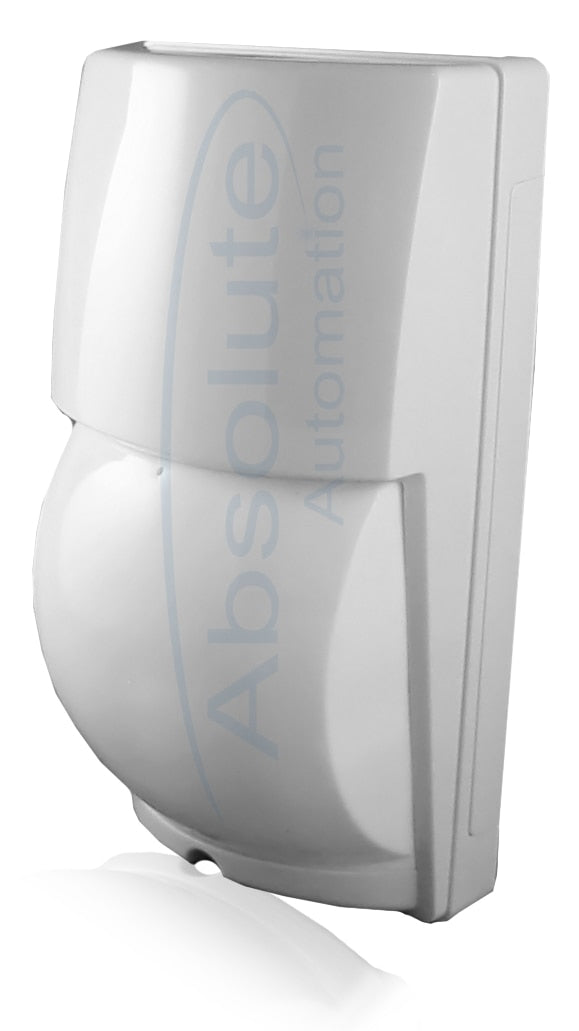

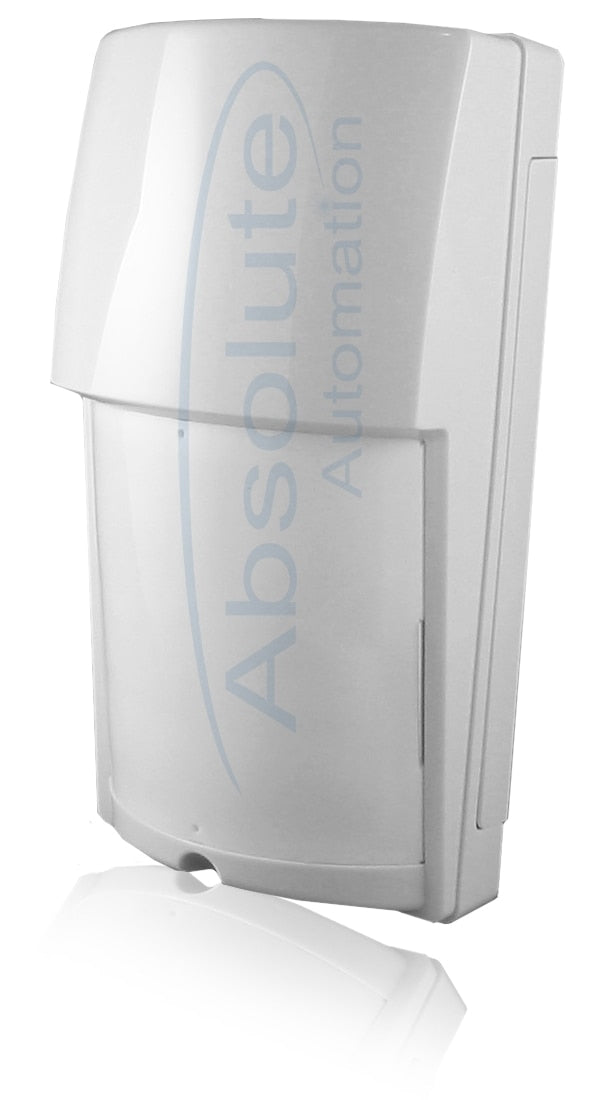

Optex LX402-802N - Optex Infrared Sensor

OptexSKU: OPLX402-01

Model: LX402 - 40' X 50'


The Optex LX-402 and LX-802N detectors are built expressly to offer numerous outdoor protection applications. These Optex detectors have a selectable detection pattern (Multi Level or Pet Alley), selectable sensitivity (High, Medium or Low) and a selectable pulse count. The Optex LX402 - 802N also feature day/night mode, a form C relay output and special UV resistant lenses and casings for outdoor use.

The LX-402 has a 40'x50' (120°) detection pattern. The LX-802N has an 80'x6' detection pattern.

1 x Optex LX Infra Red Sensor

Optex LX402/802 Manual Optex 402/802 Manual
Optex LX402/802 SpecificationsOptex LX402/802
Optex LX402 BrochureOptex LX402 Brochure

LX-402 LX-802N
Detection Method PIR PIR
Coverage 40 x 50' 120º wide (12x15m) 80 x 6.6' long range (24x2m)
Detection Zones Multi-level: 40 Multi-level: 12
Detection Zones 1 Pet Alley: 18 Pet Alley: 4
Mounting Height Multi-level: 8.3' (2.5m) max Multi-level: 8.3' (2.5m) max
Mounting Height 1 Pet Alley: 4-5' (1.2-1.5m) Pet Alley: 4-5' (1.2-1.5m)
Mounting Wall & Ceiling Wall & Ceiling
Pet Alley Area X X
Masking Plate (Strip) X
Double Conduct Shielding X X
Sensitivity Adjustment H / M / L H / M / L
Temperature Compensation Circuit X X
Pulse Count TEST (1) / 2 TEST (1) / 2
Power Input 10.8-13.2V DC 10.8-13.2V DC
Current Consumption 25mA max 25mA max
Alarm Output Form C

28V DC 0.2A max.
Form C

28V DC 0.2A max.
Tamper Output N.C. N.C.
Alarm Indicator LED X X
Day/Night Mode X X
IP Rating IP54 IP54
Operating Temperature -4 - +122 °F

(-20 - +50¢„ƒ)
-4 - +122 °F

(-20 - +50¢„ƒ)
For Residential X X
For Light Commercial X X
For Commercial X
For CCTV Camera X X
