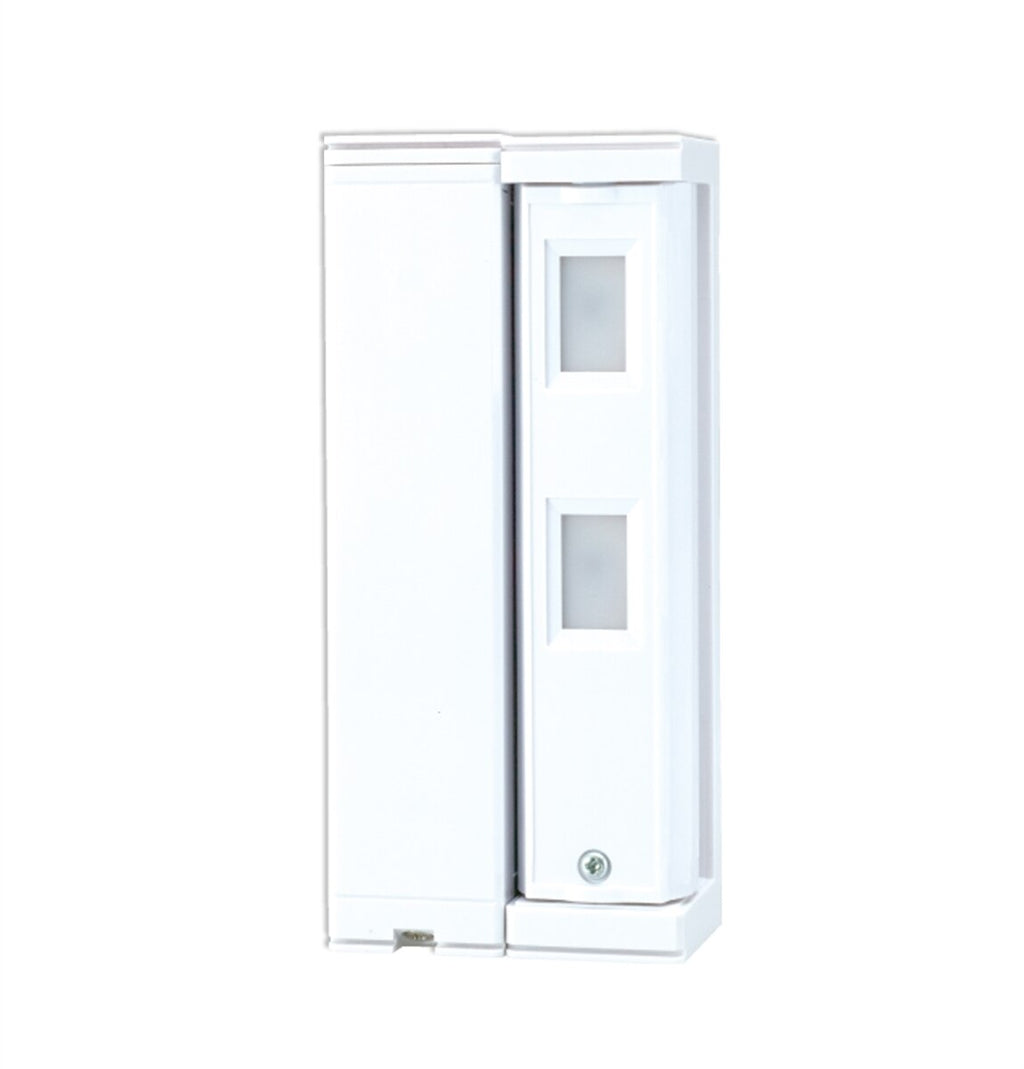

Optex FTN-RAM Outdoor Dual PIR Detector with Anti-Masking
The Optex FTN-RAM is a small and compact outdoor PIR motion detector that™s designed to work in both commercial and residential environments where disturbances such as small animals or extreme temperature fluctuations are common. Using Double Conductive Shielding and Anti-Masking, a high level of false alarm protection is guaranteed.
It comes with a built-in bracket that allows for 190-degree horizontal rotation, expanding detection range exponentially and an LED indicator to show the detector™s state. It also has selectable narrow detection ranges of 6.6ft (2m) or 16.4ft (5m) depending on how sensitive you need monitoring to be. Alarm and trouble outputs can be set to either Normal Close or Normal Open using a solid state switch.
Optex FTN-RAM Outdoor Dual PIR Detector with Anti-Masking Specifications
- Dual PIR detectors for enhanced pet tolerance
- 190° horizontal rotation with built-in mounting bracket
- Super Multi Dimension Analysis Logic analyzes every motion before signalling an alarm
- Double Conductive Shielding
- LED indicator
- Selectable 16.4ft (5m) and 6.6ft (2m) narrow detection ranges
- Operating voltage: 2.5 10VDC
- Alarm output: N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A (max.)
- Trouble output: N.C./N.O. Selectable-Solid State Switch 10 V DC 0.01 A (max.)
- Operating Temperature: -20 - +60°C (-4 - +140°F)
