Seco-Larm E-931CS22RFCQ Wireless Weatherproof Entry Alert System

Seco-Larm E-931CS22RFCQ Wireless Weatherproof Entry Alert System, Photobeam Detector 22ft

The E-931CS22RFCQ Wireless Weatherproof Entry Alert System provides a convenient solution for monitoring driveways, entrances, gates, walkways, and other access points. Utilizing a wireless reflective infrared beam sensor, the system detects movement when the beam is interrupted and instantly transmits an alert to the included indoor receiver.

Designed for both residential and commercial environments, the weather-resistant sensor can be installed outdoors while the wireless receiver provides audible notifications indoors. With selectable chime and alarm modes, adjustable volume control, and expandable wireless functionality, this system offers an effective way to improve awareness of visitor and vehicle activity.

Key Features

• Wireless communication between sensor and receiver
• Reflective infrared beam detection technology
• Weather-resistant sensor suitable for outdoor installations
• Audible notification through selectable chime or alarm modes
• Adjustable speaker volume control
• Adjustable alarm duration settings
• Ideal for driveways, entrances, gates, and walkways
• Expandable system with support for additional compatible receivers
• Quick installation without wiring between sensor and speaker
• Reliable operation for residential and commercial applications

Technical Specifications

Model Number: E-931CS22RFCQ

Detection Technology: Reflective Infrared Photoelectric Beam

Detection Range: Up to 22ft (7m)

Wireless Communication Range: Up to 328ft (100m)*

Operating Frequency: 433.92MHz

Power Requirement:

• Sensor: 12VDC
• Receiver: 12VDC
• Power adapters included

Weather Protection Rating:

• Sensor: IP55

Operating Temperature:

• 32°F to 122°F (0°C to 50°C)

Speaker Volume:

• Adjustable from 0 to 90dB

Alert Modes:

• Chime
• Alarm
• Off

Alarm Duration:

• Adjustable from 3 to 30 seconds

Current Draw:

• Sensor: 5mA standby, 20mA active
• Receiver: 25mA standby, 100mA active

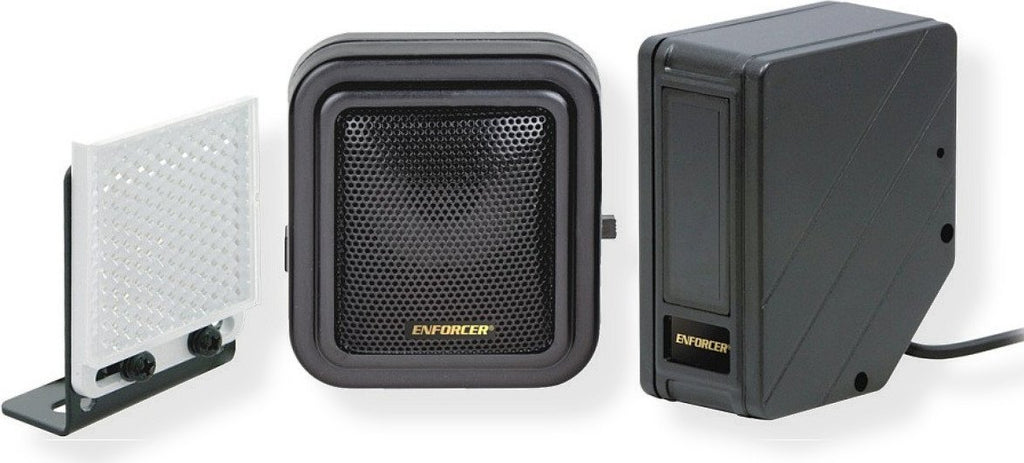

Included in the Package

• Wireless weatherproof infrared sensor (transmitter)
• Wireless indoor speaker (receiver)
• Reflector
• Two power adapters
• Mounting brackets for sensor, reflector, and receiver
• Installation hardware

Typical Applications

• Driveway vehicle detection
• Front entrance monitoring
• Visitor notification systems
• Retail store entry alerts
• Warehouse access monitoring
• Gate and pathway detection
• Office and commercial entry awareness
• Property perimeter monitoring
