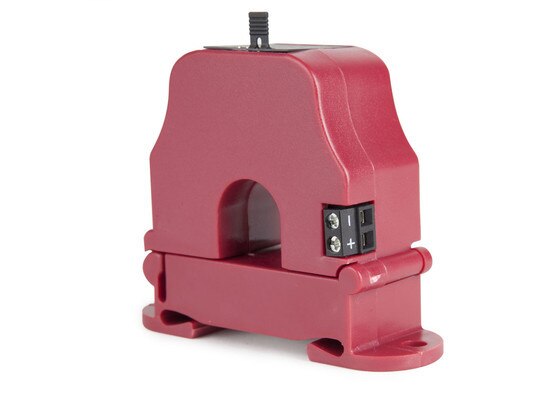

Sensaphone FGD-0075-200 4-20mA Split Core Current Sensor 200A

SensaphoneSKU: FGD0075-200



Sensaphone FGD-0075-50-200 Split Core Current Sensor

The FGD0075-200 is a 4-20mA split core current sensor from that is used for monitoring the current flowing through an electrical line. The current's magnitude is then converted into a linear and proportional 4 to 20 mA output signal that can be used by any Sensaphone model that supports 4-20mA sensors.

This sensor has selectable input ranges of 0-100a, 0-150A or 0-200A.

Sensaphone FGD-0075-200 Split Core Current Sensor Specifications

  • Sensor Supply Voltage: +12 to 30 VDC
  • Supply Current: 36 mA maximum
  • Max Load: Resistance of 700 Ohms @ 24 VDC (Vs-9)/0.02-40.2
  • Aperture (Hole) Size: 0.75" DIA (insulated conductors required)
  • Selectable ranges: 0-100, 0-150, 0-200A
  • Operating temperature: -15 to 40°C (5 to 104°F)
  • Dimensions: 3.33 x 1.08 x 2.70" (84 x 27 x 68mm)
  • cULus listed

FGD-0075-200 Includes

  • 1 x Current Sensor (200Amp model)
