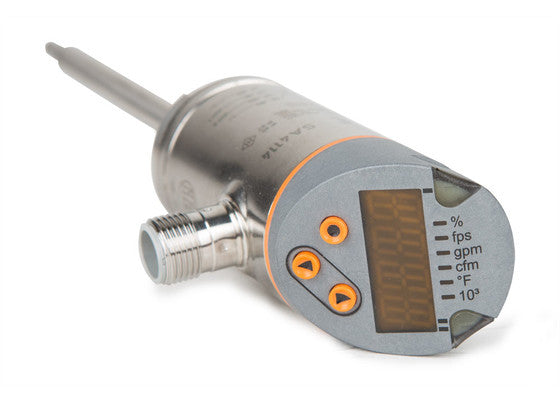

Sensaphone FGD-0223-1 4-20mA Flow Meter with Digital Display and 4" Probe for 3.5 to 10 inch Pipe
The Sensaphone FGD-0223-4 measures real time temperature and flow rates. The flow rate can be reported to any Sensaphone monitoring system that supports 4-20mA sensors. Supports water, oil, glycol or air.
The sensor also measures temperature and displays it on the built in digital display. Temperature is not transmitted.
This version has a 4" probe for pipes from 3.5 inch to 10 inches.
Note: A 24VDC power supply is required and NOT included. See part# FGD-0070 or FGD-0071 or equivalent.
- Monitors flow and temperature
- Analog 4-20mA output
- Requires 18-30 VDC power
- Supports water, glycol, air, oils
- Probe length 4" for 3.5" to 10" pipe
- Liquid Flow measuring range: .15 to 9.85 ft/s
- Gas flow measuring range: 6 to 328 ft/s
- Operating temp range: -40 to 176F
- Fitting 1/2" NPT
