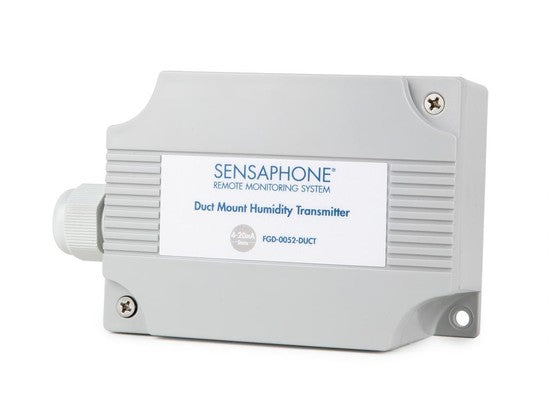

Sensaphone FGD-0052-DUCT Duct Mount 4-20mA Humidity Transmitter
This duct mounted sensor connects to Sensaphone systems supporting 4-20mA sensors. It detects and provides real time humidity readings to compatible systems. Those systems can in turn log and/or create alarms in case of hi/low readings. It can detect from 0-100% RH.
FGD-0070 or equivalent power supply required.
FGD0052-DUCT Humidity Transmitter Specifications
- Operating Temp Range: -40° to 158°F | -40° to 70°C
- Operating RH: 0 to 100% RH
- Accuracy: ±3% RH (5 - 95% RH)
- Sensor Type: 4-20mA
- Dimensions: 4.5”w x 3.3”h x 2.1”d | 114 x 84 x 53mm
- IP65 NEMA4X
FGD0052 Humidity Transmitter Support
