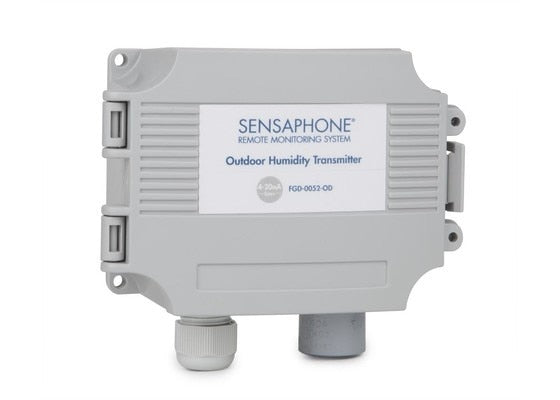

Sensaphone FGD0052-OD Outdoor Humidity Transmitter
The FGD0052-OD is a space mount, low profile outdoor humidity sensor which transmits humidity levels to a Sensaphone for programmable high and low alarm limits. It can measure humidity levels from 0% to 95%.
The sensor is hardwired and can be used with any Sensaphone that supports 4-20mA inputs. The 24V DC power supply FGD0070 is required unless used with the SCADA 3000.
Sensaphone FGD0052-OD Humidity Sensor Specifications
- Measure humidity levels from 0% to 95%
- Accuracy at 25°C: ±3% RH
- Hardwired connection
- 4-20mA Series
- Requires a 24VDC power supply part FGD-0070
- Dimensions: 2.8 x 4.5 x 1.2" | 70 x 114 x 29mm
- Operating temperature: -10° to 160°F | -23° to 71°C
