Description

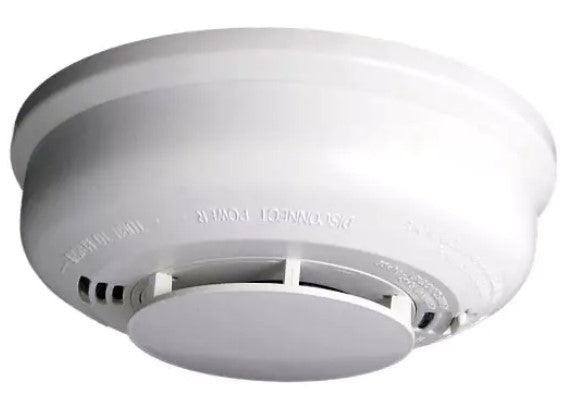

The 2012JA is a 4-wire, 12–24 VDC photoelectric smoke detector designed for use with security alarm systems or other low-voltage setups. It is compatible with any standard wired alarm system that supports 4-wire smoke detectors. The 2012JA features a test and alarm silence (hush) button, visual indicators for power and alarm status, and a built-in sounder to alert occupants in case of smoke detection.
Features:
- built-in relay which may be used to activate auxiliary devices such as bells, horns, and door closers
- additional terminals that allow it to be interconnected with up to 12 other 2012JA units, enabling all connected detectors to sound simultaneously in the event of a fire.
Specifications:
- Photoelectric
- Alarm sounder, 85 dB
- Max. Interconnected Units: 12
- Operating voltage 12-30VDC
- Silence Timeout Period: 8 minutes
- Built in Form C relay output (Normally open and normally closed)
- Operating Temperature Range 0° to 50° Humidity: 5% to 93% R.H
- Removeable smoke chamber
- Push button for silence and test
- Visual alarm and power LED indicators
- ULC listed for use in Canada CAN/ULC-S531
* 3 year manufacturer's warranty from the date of manufacture.
** Current manufacturing date 2024. Smoke detectors should be tested regularly and replaced when they fail or after 10 years of use.
