Winland WB200 Water Bug Leak Sensor

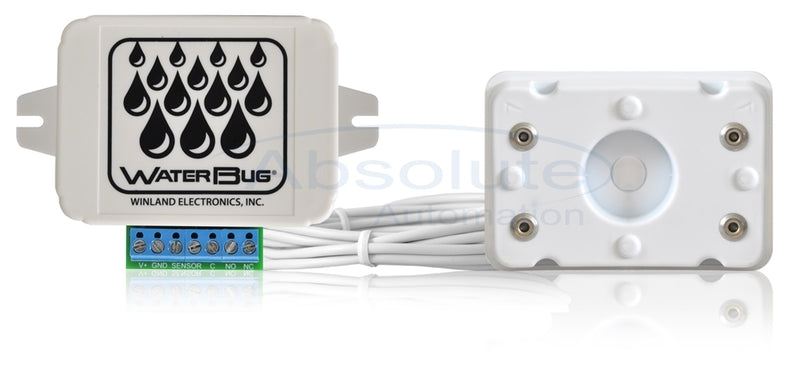

Winland WaterBug WB200

The WaterBug WB200 is a water detection device ideal for computer rooms, document storage areas, warehouses, sump pumps and basements.

It operates on 12 or 24 Volt AC/DC and has a form C relay output that can be connected to alarm panels, bells, dialers, etc.

The unit can monitor up to as many as six sensors up to a hundred feet away, depending on the wire used. Each sensor has surface contacts that will detect the first appearance of water forming a film on the floor. The sensor will not alarm due to condensation or high humidity.

One standard surface sensor is included with the unit.

Ideal For:

  • Residential or Vacation Homes
  • Basement Sump Pumps
  • Commercial Buildings
  • Office and Computer Areas
  • Unattended Buildings
  • Greenhouses and Animal Buildings
  • All Drain Areas
  • Sprinkler Systems

*Please note: power supply is not included.
For WN12VDCT power supply click here.

WaterBug Features:

  • Console includes one standard unsupervised surface sensor (W-S-U)
  • Console accepts up to 6 total sensors (W-S-U and W-UC-U)
  • Sensors can be located up to 100' (30.48 m) away from the unit for wide area protection
  • Can be used to detect an absence of water


  • Power Requirements: 8 to 28 VDC @ 35mA or 8 to 28 VAC @ 100 mA
  • Operating Temperature: 32 to 130°F (0 to 54 °C)
  • Output:
    • Form C (N.O./N.C.)
    • 1 Amp @ 30 VDC, resistive
    • 1 Amp @ 24 VAC, resistive
  • Audible Alarm Install a BZ-1 for local buzzer
  • Maximum Distance Between Console and Sensors
    • 1-2 probes; max 200' (61 m)
    • 3-6 probes; max 100' (30.5 m) per sensor
  • 6 Maximum Sensors per Console
  • Dimensions: 4.1 x 2.36 x 1.18" (10 x 6 x 3 cm) with flanges


  • (1) x WB-200 WaterBug Alarm Unit
  • (1) x WSU standard unsupervised surface sensor



Water Bug 200 Manual
WB200 Service Sensor Placement Guide
WB200 Wiring Diagram
WaterBug WB200 Sales Sheet
